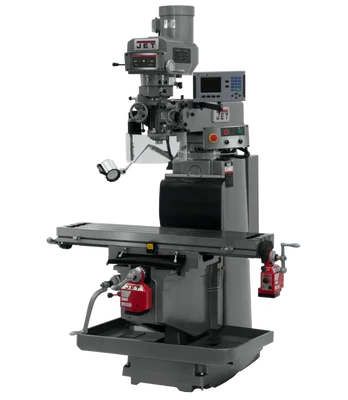

Jet JTM-1254RVS Mill w/ACURITE 203 3X (Q) DRO & XY Powerfeeds (698122)

Description

Jet JTM-1254RVS Mill w/ACURITE 203 3X (Q) DRO & XY Powerfeeds (698122) is a heavy-duty 12″ x 54″ variable speed vertical milling machine designed for professional metalworking applications. It combines durability, strength, and precision engineering to deliver superior results.

KEY FEATURES AND BENEFITS

• Durable Construction:
  • Certified Meehanite® castings for vibration dampening and stability.
  • Precision-bored and honed milling head for accuracy.
  • High-precision Class 7 spindle bearings for smooth operation.
• Enhanced Precision and Control:
  • ACU-RITE 203 3X (Q) DRO for precise positioning on three axes (X, Y, and Quill).
  • Adjustable gibs throughout for maintaining tight tolerances.
• Increased Efficiency:
  • Automatic lubrication system reduces maintenance.
  • X & Y-axis powerfeeds for automated movement.
  • Quick-nut spindle feed for easy adjustments.
• User-Friendly Design:
  • JET exclusive new casting simplifies machine leveling.
  • LED machine lamp for improved visibility.
  • Convenient features like a chip pan, drawbar, toolbox with tools, and dual locks on movable surfaces.

SPECIFICATIONS

• Digital Readout: ACU-RITE 203 3X (Q)
• Number of Axis: 3 (Quill)
• Powerfeed: X & Y-Axis
• Spindle Taper (In. x TPI): R-8
• Table Size (L x W) (In.): 12 x 54
• Quill Diameter (In.): 4-1/8
• Range of Spindle Speeds (RPM): 80 – 3,800

HOW TO USE

1. Machine Setup: Ensure the machine is properly leveled, lubricated, and connected to the appropriate power source. Install the desired cutting tool and secure it in the spindle taper.
2. Workpiece Setup: Secure the workpiece to the table using clamps or a vise, ensuring proper alignment and safety.
3. Positioning and Machining: Utilize the DRO and manual controls to position the cutting tool precisely. Engage the spindle motor and powerfeeds (if applicable) to perform the desired machining operations.
4. Safety: Always wear appropriate safety gear, including eye protection, gloves, and proper clothing. Maintain a clean work area and follow safe machining practices.

BENEFITS OF USING Jet JTM-1254RVS Mill w/ACURITE 203 3X (Q) DRO & XY Powerfeeds (698122)

• High-Quality Results: Delivers precise cuts and finishes for professional metalworking projects.
• Increased Efficiency: Automates tasks and simplifies operation for faster completion times.
• Durability and Reliability: Built to withstand demanding applications and provide long-lasting performance.
• User-Friendly Features: Streamlines operation and reduces maintenance requirements.

FEATURES

• Certified Meehanite® Castings for a rigid machine base.
• Precision-bored and honed milling head for spindle alignment.
• High-precision Class 7 spindle bearings for smooth operation.
• Quick-change spindle feed nut for efficient adjustments.
• Three-stage power downfeed with automatic stop for controlled feeding.
• Heavy-duty spindle brake for rapid stopping power.
• Precision-ground ways and table for accurate movement.
• Three precision-ground T-slots for workpiece clamping options.
• Turcite B on X & Y Axis for reduced friction and wear.
• Adjustable gibs throughout the machine for maintaining precision.
• CSA/CUS certified for adherence to electrical safety standards.
• Automatic lubrication system minimizes maintenance requirements.
• JET exclusive new casting simplifies machine leveling.
• Standard equipment includes spindle guard, LED work lamp, chip pan, drawbar, and toolbox.
