Jet JTM-1254RVS Mill w/NEWALL DP700 3X (K) DRO & XY Powerfeed (698134)

Description

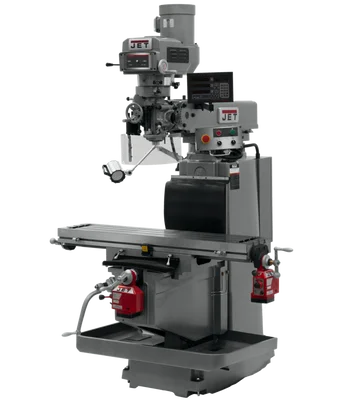

Jet JTM-1254RVS Mill w/ NEWALL DP700 3X (K) DRO & XY Powerfeed (698134) is a heavy-duty vertical milling machine designed for precision and durability in demanding machine shop and tool room environments. This 12″ x 54″ variable speed mill features a sturdy cast iron base and column for stability, along with a precision-bored and honed milling head for accurate machining.

KEY FEATURES AND BENEFITS:

• Powerful Performance: 5 HP motor delivers ample power for a wide range of milling applications.
• Variable Speed Control: Adjust spindle speed from 80 to 3,800 RPM for optimal cutting performance on various materials.
• Precision Machining: Newall DP700 3-axis DRO system ensures accurate positioning of the cutting tool.
• Enhanced Efficiency: X and Y-axis power feeds automate movement, reducing operator fatigue and improving productivity.
• Durable Construction: Certified Meehanite® castings, precision-ground ways and table provide a solid foundation for precise results.
• Easy Leveling: Unique JET casting design simplifies machine leveling without lifting.

SPECIFICATIONS:

• Spindle Taper: R8
• Table Size: 12″ x 54″
• Spindle Travel: 5″
• Quill Down Feed Rates: 0.0015-0.003-0.008 in/rev (IPR)
• Range of Spindle Speeds: 80-3,800 RPM
• Motor: 5 HP, 230/460V, 3-Phase
• Overall Dimensions: 92-1/8″ x 79-7/8″ x 104-1/4″
• Weight: 3,969 lbs.

HOW TO USE:

1. Installation: Following the manufacturer’s instructions, securely position the milling machine on a level and stable surface. Ensure proper electrical connection based on voltage requirements (230V or 460V).
2. Workpiece Setup: Mount the workpiece onto the table using appropriate clamps or vises. Ensure proper clearance between the tool and workpiece.
3. Tool Selection: Select the appropriate cutting tool (milling cutter, drill bit, etc.) based on the material and desired machining operation. Install the tool securely into the R8 spindle taper.
4. Speed and Feed Selection: Consult cutting tool recommendations and material specifications to determine the optimal spindle speed and feed rate for your application. Set the variable speed control and power feed settings accordingly.
5. Machine Operation: Engage the spindle and power feeds (if applicable) using the machine’s controls. Move the cutting tool along the desired path to machine the workpiece. Utilize the DRO system for precise positioning and dimensional control.
6. Safety: Always wear appropriate safety gear, including eye protection, gloves, and proper clothing, while operating the milling machine. Follow safe machining practices to prevent accidents.

BENEFITS OF USING Jet JTM-1254RVS Mill w/ NEWALL DP700 3X (K) DRO & XY Powerfeed (698134):

• Achieve high-quality machining results: with precise control and variable speed options.
• Increase productivity: and reduce operator fatigue with automated X and Y-axis power feeds.
• Ensure consistent accuracy and repeatability: with the integrated Newall DP700 DRO system.
• Handle demanding tasks: with the powerful 5 HP motor and sturdy construction.
• Benefit from user-friendly features: like quick nut spindle feed and automatic lubrication.

FEATURES:

• Certified Meehanite® Castings for a solid and stable base.
• Precision Bored and Honed Milling Head for accurate machining.
• High-Precision Class 7 Spindle Bearings for smooth operation.
• Quick Spindle Feed Nut for efficient tool changes.
• Three-Stage Power Downfeed with Automatic Stop for precise depth control.
• Heavy-Duty Spindle Brake for rapid stopping power.
• Precision Hardened and Ground Ways and Table for smooth travel.
• Three Precision Ground T-Slots for secure workpiece clamping.
• Turcite B on X & Y Axis for reduced friction and wear.
• Adjustable Gibs Throughout for maintaining machine alignment.
• CSA/CUS Certified for electrical safety compliance.
• Spindle Guard for operator protection.
• Automatic Lubrication System for reduced maintenance.
• JET Exclusive New Casting for simplified machine leveling.
• Standard Equipment: Spindle Safety Guard, LED Machine Lamp, Dual Locks on Movable Surfaces, Chip Pan, Drawbar, Toolbox
