Description

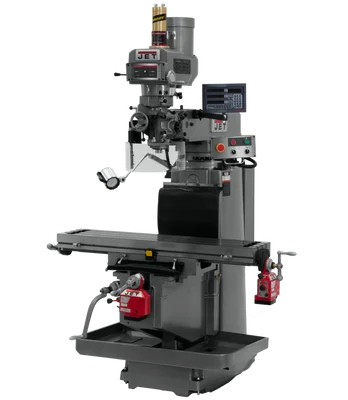

Experience industrial-grade precision and durability with the Jet JTM-1254RVS Vertical Mill w/DP700 3X-K DRO X/Y PFD APDB (698135). This versatile machine is ideal for a variety of metalworking applications, delivering exceptional performance for machinists of all skill levels.
KEY FEATURES AND BENEFITS:
- Built to Last:
- Rugged base constructed from certified Meehanite® castings for long-lasting stability and vibration dampening.
- Precision-bored and honed milling head ensures consistent accuracy.
- High-precision Class 7 spindle bearings minimize friction for smooth operation.
- Enhanced Efficiency and Control:
- Variable speed motor allows for adjusting cutting speeds for optimal performance with different materials.
- Automatic lubrication system reduces maintenance requirements and extends machine life.
- Quick-change spindle feed nut enables fast adjustments for improved workflow.
- Three-stage power downfeed with automatic stop provides precise control during milling operations.
- Newall DP700 Digital Readout (DRO) displays real-time X, Y, and Z-axis positioning for unmatched accuracy.
- X and Y-axis power feeds automate movement of the cutting head, streamlining your machining process.
- Air power drawbar simplifies tool changes, saving valuable time.
- Versatility and Capacity:
- Spacious 12″ x 54″ table accommodates a wide range of workpieces.
- Precision-hardened and ground ways and table ensure flatness and stability for clean cuts.
- Three precision-ground T-slots offer secure clamping of your materials.
- Durable Turcite B on X & Y axes enhances wear resistance for extended machine longevity.
- R-8 spindle taper provides compatibility with a broad selection of tooling.
- Heavy-duty spindle brake ensures operator safety during machine operation.
- Max distance spindle to table: 23 inches allows for machining of taller workpieces.
- Powerful 5 HP, 230/460V, 3-phase motor delivers ample power for demanding tasks.
- Impressive worktable weight capacity of 925 lbs accommodates heavier materials.
- User-Friendly Design:
- Adjustable gibs throughout maintain machine accuracy over time.
- Dual locks on all moveable surfaces guarantee stability during operation.
- LED machine lamp illuminates your workspace for improved visibility.
- Chip pan facilitates easy chip collection and cleanup.
- Drawbar and toolbox with tools included for immediate use.
SPECIFICATIONS:
- Table Size: 12″ x 54″
- Spindle Taper: R-8
- Motor: 5 HP, 230/460V, 3-phase
- Max Distance Spindle to Table: 23 inches
- Digital Readout: Newall DP700 3X-K DRO
- Power Feeds: X and Y axes
- Power Drawbar: Air-powered
- Automatic Lubrication: Yes
- Worktable Weight Capacity: 925 lbs
HOW TO USE:
Follow these steps for efficient operation of the Jet JTM-1254RVS Vertical Mill w/DP700 3X-K DRO X/Y PFD APDB:
- Ensure the machine is properly leveled using the JET-exclusive casting design.
- Set the spindle speed according to the material being machined for optimal cutting performance.
- Use the Newall DP700 DRO system to precisely position the cutting tool on X, Y, and Z-axis.
- Activate the power feeds on the X and Y axes to automate movement during milling operations.
- Maintain the automatic lubrication system to ensure smooth operation and extend machine life.
- Utilize the air-powered drawbar for quick and efficient tool changes.
BENEFITS OF USING Jet JTM-1254RVS Vertical Mill w/DP700 3X-K DRO X/Y PFD APDB (698135):
- Provides exceptional stability and vibration dampening with Meehanite® castings.
- Delivers precise machining with high-precision components and digital readout.
- Enhances productivity with automated features like powerfeeds and air power drawbar.
- Simplifies operation and maintenance with automatic lubrication and easy leveling system.
FEATURES:
- Rugged Meehanite® Castings
- Precision-Bored and Honed Milling Head
- High-Precision Class 7 Spindle Bearings
- Newall DP700 Digital Readout (DRO)
- X and Y-Axis Power Feeds
- Air Power Drawbar
- Automatic Lubrication System
- Adjustable Gibs Throughout
- Dual Locks on Moveable Surfaces
- LED Machine Lamp
- Chip Pan
- Drawbar and Toolbox with Tools Included
