Description

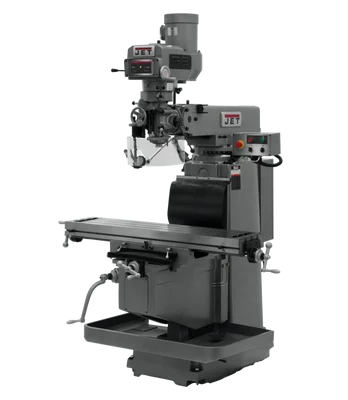

Jet JTM-1254VS Mill w/ Acu-Rite 303 DRO & X Powerfeed (698146) is a robust 12″ x 54″ variable speed vertical milling machine designed for precision and efficiency. Equipped with an Acu-Rite 303 DRO and X-axis power feed, this machine offers enhanced control and productivity. Built with certified Meehanite castings, it ensures durability and stability during operation.
KEY FEATURES AND BENEFITS:
- Precision and Accuracy: The Acu-Rite 303 DRO provides precise measurements for accurate milling operations.
- Efficiency: The X-axis power feed accelerates work processes and reduces manual effort.
- Durability: Certified Meehanite castings and high-quality components ensure long-lasting performance.
- Convenience: Automatic lubrication and quick nut spindle feed minimize maintenance and enhance usability.
- Versatility: A wide range of spindle speeds accommodates various applications.
SPECIFICATIONS:
- Table Size: 12″ x 54″
- Spindle Taper: NT40
- Quill Diameter: 4-1/8″
- Spindle Speed Range: 80-3,800 RPM
- Quill Down Feed Rates: .0015-.003-.008 IPR
- Spindle Travel: 5″
- X-axis Power Feed: Included
- Digital Readout: Acu-Rite 303 DRO
- Motor: 5HP, 230/460V, 3Ph
- Overall Dimensions: 92-1/8″ x 79-7/8″ x 104-1/4″
- Weight: 3969 lbs
HOW TO USE:
- Setting Up the Machine:
- Ensure the machine is placed on a stable and level surface.
- Connect the machine to the power supply according to the manual.
- Check all safety features, including the spindle guard and emergency stop button.
- Basic Milling Operations:
- Secure the workpiece to the machine table using clamps or vices.
- Select the appropriate cutting tool and secure it in the spindle.
- Set the desired spindle speed and feed rate.
- Use the DRO to accurately position the workpiece.
- Engage the power feed for the X-axis (if needed) and begin milling.
- Monitor the cutting process and make adjustments as necessary.
- Turn off the machine and safely remove the workpiece after completion.
BENEFITS OF USING Jet JTM-1254VS Mill w/ Acu-Rite 303 DRO & X Powerfeed (698146):
- Improved Productivity: Faster cutting and reduced manual labor.
- Enhanced Accuracy: Precision in milling operations.
- Longer Machine Life: Durable construction and automatic lubrication.
- Easier Operation: Quick nut spindle feed and user-friendly controls.
- Versatility: Handles a wide range of milling tasks.
FEATURES:
- Certified Meehanite castings
- Acu-Rite 303 DRO
- X-axis power feed
- Automatic lubrication
- Quick nut spindle feed
- Wide spindle speed range
- Precision ground ways and table
- Three-stage power downfeed
