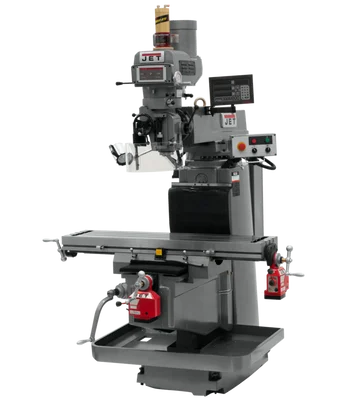

Jet JTM-1254VS Mill w/ DP700 3X-K X/Y PFD & APDB (698075)

Description

The Jet JTM-1254VS Mill w/ DP700 3X-K X/Y PFD & APDB (698075) is a heavy-duty vertical milling machine designed for precision metalworking applications. Featuring a spacious 12-inch x 54-inch table, it is ideal for handling a variety of workpiece sizes. The machine’s variable speed motor offers a broad range of speeds (80 – 3,800 RPM), enabling efficient machining of different materials and cutting operations. Utilizing an NT40 spindle taper, it ensures compatibility with a wide selection of tooling.

KEY FEATURES AND BENEFITS:

• Precision and Control:
  • Durable Meehanite® castings provide a solid foundation for precision machining.
  • Precision-bored and honed milling head ensures spindle alignment and accuracy.
  • High-precision Class 7 spindle bearings minimize runout and vibration.
  • Quick spindle feed nut allows for fast and easy manual feed adjustments.
  • Three-stage power downfeed with automatic stop enhances control during milling operations.
  • Heavy-duty spindle brake ensures rapid spindle stoppage for safety.
  • Precision hardened and ground ways and table guarantee smooth and accurate movement.
  • Three precision-ground T-slots offer secure workpiece clamping.
  • Turcite B on X & Y Axis provides a low-friction surface for smooth travel.
  • Adjustable gibs throughout enable precise adjustment of machine components for optimal performance.
• Efficiency and Automation:
  • Newall DP700 Digital ReadOut (DRO) delivers real-time position data for precise control.
  • Power feeds on X and Y axes enable automated movement for efficient production.
  • Air power drawbar facilitates quick and effortless tool changes.
• Durability and Safety:
  • CSA/CUS certified ensures adherence to strict electrical safety standards.
  • Spindle guard enhances operator safety during operation.
  • LED machine lamp provides excellent work area illumination.
  • Dual locks on all movable surfaces ensure secure positioning.
  • Chip pan simplifies chip collection and cleanup.
  • Drawbar included for tool retention.
  • Toolbox with tools provides essential tools for basic machine operation and maintenance.

SPECIFICATIONS:

• Table Size: 12″ x 54″
• Motor: Variable Speed, 80 – 3,800 RPM
• Spindle Taper: NT40
• Digital Readout: Newall DP700 3X-K
• X/Y Power Feed: Yes
• Air Power Drawbar: Yes
• Spindle Brake: Heavy-duty
• Worktable Capacity: 12″ x 54″, 925 lbs.
• Weight: [Weight]

HOW TO USE:

Follow these steps for efficient operation of the Jet JTM-1254VS Mill w/ DP700 3X-K X/Y PFD & APDB:

1. Ensure the machine is securely positioned and leveled.
2. Set the appropriate spindle speed for the material being machined.
3. Utilize the Newall DP700 DRO for precise positioning on the X, Y, and Z axes.
4. Activate the X and Y-axis power feeds for automated movement during machining.
5. Use the air power drawbar for quick and effortless tool changes.

BENEFITS OF USING THE Jet JTM-1254VS Mill w/ DP700 3X-K X/Y PFD & APDB (698075):

• Enhanced precision and control for accurate machining.
• Efficient production with automated power feeds and tool changes.
• Durable construction and safety features ensure long-term reliability.
• Versatile capabilities for a wide range of metalworking applications.

FEATURES:

• Spacious 12″ x 54″ Table
• Variable Speed Motor (80 – 3,800 RPM)
• NT40 Spindle Taper
• Newall DP700 Digital ReadOut (DRO)
• X and Y-axis Power Feeds
• Air Power Drawbar
• Durable Meehanite® Castings
• Precision-bored and Honed Milling Head
• High-precision Class 7 Spindle Bearings
• Quick Spindle Feed Nut
• Three-stage Power Downfeed with Automatic Stop
• Heavy-duty Spindle Brake
• Precision Hardened and Ground Ways and Table
• Three Precision-ground T-slots
• Turcite B on X & Y Axis
• Adjustable Gibs Throughout
• CSA/CUS Certified
• Spindle Guard
• LED Machine Lamp
• Dual Locks on All Movable Surfaces
• Chip Pan
• Drawbar
• Toolbox with Tools
