Description

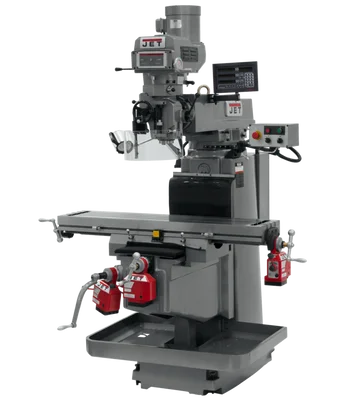

Jet JTM-1254VS Mill w/ NEWALL DP700 3X (Q) DRO & XYZ Powerfeed (698082) is a robust and precise vertical milling machine designed for efficient metalworking operations. Equipped with a NEWALL DP700 DRO and power feeds on all axes, this machine offers accurate control and smooth operation.
KEY FEATURES AND BENEFITS
- NEWALL DP700 DRO: Provides precise measurements for accurate workpieces.
- X, Y, and Z Power Feeds: Enhances efficiency and reduces operator fatigue.
- 12″ x 54″ Table: Offers ample workspace for various projects.
- NT40 Spindle: Accommodates a wide range of cutting tools.
- Variable Speed Range: Allows for optimal cutting conditions for different materials.
- Durable Construction: Built to withstand heavy-duty use.
- Easy-to-Use Controls: Simplifies operation for users of all skill levels.
SPECIFICATIONS
- Model Number: JTM-1254VS
- Spindle Taper: NT40
- Table Size: 12″ x 54″
- Spindle Speed Range: 80-3800 RPM
- Power Feeds: X, Y, and Z axes
- Digital Readout: NEWALL DP700 3X (Q)
- Motor: 5HP, 230/460V, 3Ph
- Overall Dimensions: 92-1/8″ x 79-7/8″ x 104-1/4″
- Weight: 3969 lbs
HOW TO USE
- Set up the machine: Ensure the machine is securely placed on a level surface. Connect to the power supply and turn on the main power switch.
- Zero the DRO: Set the digital readout to zero for accurate measurements.
- Select spindle speed: Choose the appropriate spindle speed based on the material and cutting tool.
- Secure workpiece: Clamp the workpiece firmly to the machine table using a vise or clamps.
- Adjust cutting tool: Select and install the correct cutting tool in the spindle.
- Engage power feed: Turn on the desired power feed (X, Y, or Z) and adjust the feed rate as needed.
- Start milling: Lower the spindle into the workpiece and begin the milling operation, monitoring the cutting process.
- Coolant application: Apply coolant to the cutting tool for improved tool life and surface finish.
- Machine maintenance: Regularly clean and lubricate the machine according to the manufacturer’s recommendations.
BENEFITS OF USING Jet JTM-1254VS Mill w/ NEWALL DP700 3X (Q) DRO & XYZ Powerfeed
- Increased productivity: Power feeds and accurate DRO improve efficiency.
- Improved precision: NEWALL DRO ensures accurate measurements and cuts.
- Versatility: Handles a wide range of materials and cutting tasks.
- Durability: Built to last with heavy-duty construction.
- Ease of use: User-friendly controls for efficient operation.
FEATURES
- Certified Meehanite castings
- Precision bored and honed milling head
- High precision Class 7 spindle bearings
- Quick spindle feed nut
- Three-stage power downfeed with automatic stop
- Heavy-duty spindle brake
- Precision hardened and ground ways and table
- Three precision ground t-slots
- Turcite B on X & Y axis
- Adjustable gibs throughout
- CSA/CUS certified
- Spindle guard
- Spindle brake
- Automatic lubrication
- Quick nut for spindle feed
- JET exclusive new casting for easy leveling
- Two 115V outlets for power feeds
- Spindle safety guard
- LED machine lamp
- Dual locks on all moveable surfaces
- Chip pan
- Draw bar
- Tool box with tools
