Description

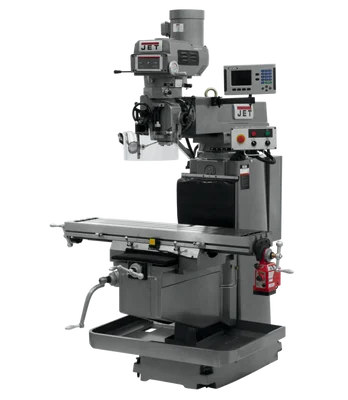

Jet JTM-1254VS Mill With ACU-RITE 203 DRO & X Powerfeed (698049) is a robust and versatile vertical milling machine designed for precision machining applications. Equipped with an ACU-RITE 203 DRO and X-axis power feed, this machine offers enhanced accuracy and efficiency. Built with certified Meehanite castings, the JTM-1254VS ensures durability and stability.
KEY FEATURES AND BENEFITS:
- ACU-RITE 203 DRO: Provides precise measurements and positioning for accurate cuts.
- X-axis power feed: Increases productivity and reduces operator fatigue.
- Certified Meehanite castings: Offers exceptional strength and rigidity.
- Variable speed range: Allows for optimal cutting conditions for various materials.
- Heavy-duty quill and spindle: Ensures reliable performance and long lifespan.
SPECIFICATIONS:
- Table Size: 12″ x 54″
- Spindle Taper: NT-40
- Spindle Speed Range: 80-3,800 RPM
- Motor: 5 HP, 230/460V, 3 Ph
- Power Feed: X-axis
- Digital Readout: ACU-RITE 203
- Other Features: Automatic lubrication, quick spindle feed, hardened and ground table, Turcite B on X and Y axis, adjustable gibs, spindle guard, LED machine lamp, and more.
HOW TO USE:
- Set up the workpiece: Securely clamp the workpiece to the machine table using appropriate clamps and vices.
- Select the correct cutting tool: Choose a cutting tool that matches the material and desired cutting conditions.
- Set spindle speed and feed rate: Adjust the spindle speed based on the material and tool, and set the feed rate for the desired cutting depth.
- Zero the DRO: Ensure accurate measurements by zeroing the DRO before starting the machining process.
- Program the machine: If using CNC controls, input the desired cutting paths and parameters.
- Engage power feed (if applicable): Activate the X-axis power feed for automated material removal.
- Start the machine: Begin the milling operation, monitoring the cutting process and making adjustments as needed.
- Coolant application: Use coolant to improve tool life and surface finish.
- Chip removal: Regularly clear chips from the cutting area to prevent obstructions.
BENEFITS OF USING Jet JTM-1254VS Mill With ACU-RITE 203 DRO & X Powerfeed (698049):
- Increased productivity: The X-axis power feed and variable speed range enhance efficiency.
- Improved accuracy: The ACU-RITE 203 DRO ensures precise measurements and cuts.
- Enhanced durability: Certified Meehanite castings and heavy-duty construction provide long-lasting performance.
- Versatility: Suitable for a wide range of milling applications.
- Operator safety: Equipped with safety features like spindle guard and emergency stop.
FEATURES:
- Certified Meehanite castings
- Hardened and ground table
- Chrome lead screws on X and Y axis
- Turcite B on X and Y axis
- Satin chrome finish on dials
- Precision bored and honed milling head
- Large diameter quill is chromed
- High precision Class 7 spindle bearing
- Spindle head is internally cooled
- No fuse breaker power connections
- Heavy Duty Motor Drive
- Chrome Plated Motor Shaft with Bearing Support at End
- One Piece Quill Pinion and Shaft
- Three Stage Power Downfeed with Automatic Stop
- Heavy Duty Spindle Brake
- Locks on All Moveable Surfaces
- Adjustable Gibs Throughout
- Way Covers
- Draw Bar
- Tool Box with Tools
