Description

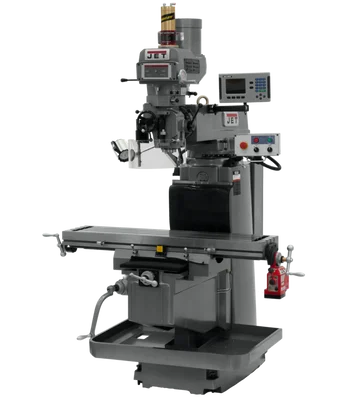

Jet JTM-1254VS w/ACU-RITE 203 DRO X Pwrfd & Air Power Drawbar (698050) is a heavy-duty variable speed vertical milling machine designed for precision and efficiency. Built with certified Meehanite castings, this machine offers exceptional durability and stability. Equipped with an ACU-RITE 203 DRO, X Powerfeed, and Air Power Drawbar, it enhances accuracy and productivity.
KEY FEATURES AND BENEFITS:
- Precision and Accuracy: High precision Class 7 spindle bearings, precision hardened and ground ways, and table ensure accurate machining.
- Durability and Stability: Certified Meehanite castings provide a solid foundation for heavy-duty milling operations.
- Efficiency: Quick spindle feed nut, three-stage power downfeed, and automatic lubrication system optimize workflow.
- Safety: Spindle guard, spindle brake, and dual locks on moveable surfaces prioritize operator safety.
- User-Friendly: Exclusive new casting for easy leveling, LED machine lamp, and tool box with tools enhance user experience.
SPECIFICATIONS:
- Stock Number: JT-698050
- Collet Capacity: 1/8 – 1
- Column Width: 14-1/4 in
- Distance Spindle to Column (Max): 27-3/4 in
- Max Distance Spindle to Table: 23 in
- Model Number: JTM-1254VS
- Motor: 5 HP, 230/460V, 3 Ph
- Number of Axis: 2
- Overall Dimensions (L x W x H): 92-1/8 x 79-7/8 x 104-1/4 in
- Power Draw Bar: Pneumatic
- Powerfeed: X-Axis
- Quill Diameter: 4-1/8 in
- Quill Down Feed Rates (IPR): .0015–.003–.008
- Range of Spindle Speeds (RPM): 80 – 3,800
- Saddle Width: 25-5/8 in
- Spindle Taper: NST #40
- And more: (Please provide additional specifications if needed)
HOW TO USE:
- Setting Up:
- Ensure the machine is securely placed on a level surface.
- Connect the machine to the power supply according to the manual.
- Check all safety features are in place.
- Basic Operation:
- Lower the quill using the handwheel.
- Insert the desired cutting tool into the spindle and tighten the drawbar.
- Select the appropriate spindle speed for the material you’re working with.
- Engage the power feed for automatic table movement.
- Carefully lower the quill into the workpiece to start milling.
- Monitor the cutting process and adjust feed rate and depth as needed.
- Safety Precautions:
- Always wear safety goggles and hearing protection.
- Use proper clamping methods for workpieces.
- Never reach into the machine while it’s running.
- Follow the operator’s manual for detailed instructions and safety guidelines.
BENEFITS OF USING Jet JTM-1254VS w/ACU-RITE 203 DRO X Pwrfd & Air Power Drawbar:
- The Jet JTM-1254VS milling machine offers numerous advantages for professionals and hobbyists alike.
- Its precision and durability allow for accurate and efficient machining of various materials.
- The machine’s user-friendly design makes it easy to operate, even for beginners.
- With its powerful motor and versatile features, this milling machine is ideal for a wide range of applications, from hobbyist projects to professional production.
FEATURES:
- Certified Meehanite Castings
- Precision bored and honed milling head
- High precision Class 7 spindle bearings
- Quick Spindle Feed Nut
- Three-stage power downfeed with automatic stop
- Heavy-duty spindle brake
- Precision hardened and ground ways and table
- Three Precision ground t-slots
- Turcite B on X & Y Axis
- Adjustable gibs throughout
- CSA/CUS certified
- Spindle Guard
- Spindle Brake for rapid stopping
- Automatic Lubrication
- Quick nut for spindle feed
- JET exclusive new casting
- Two 115V outlets on electrical box for Powerfeeds only
- Spindle Safety Guard
- LED Machine Lamp
- Dual Locks on All Moveable Surfaces
- Chip Pan
- Draw Bar
- Tool Box with Tools
