Description

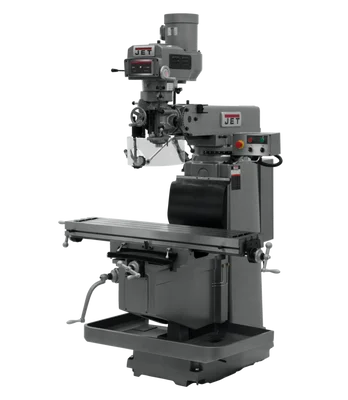

The Jet JTM-1254VS with X Powerfeed & Air Power Drawbar Mill (698026) is a robust vertical milling machine built for precision and efficiency. It features a 12″ x 54″ table, variable speed control, and a powerful 5HP motor. Designed with the user in mind, it offers convenient features like automatic lubrication and quick nut spindle feed.
KEY FEATURES AND BENEFITS:
- X-axis power feed: Increases productivity by automating table movement.
- Air power drawbar: Allows for effortless tool changes.
- Variable speed control: Provides versatility for different machining tasks.
- Automatic lubrication system: Reduces maintenance needs and extends machine life.
- Quick nut spindle feed: Ensures efficient operation.
- Certified Meehanite castings: Ensure durability and precision.
- Heavy-duty construction: Designed for long-lasting performance.
SPECIFICATIONS:
- Spindle Taper: NST #40
- Table Size: 12″ x 54″
- Spindle Speeds: 80-3,800 RPM
- Quill Diameter: 4-1/8″
- Motor: 5HP, 230/460V, 3Ph
- Overall Dimensions: 92-1/8″ x 79-7/8″ x 104-1/4″
- Weight: 3969 lbs
HOW TO USE:
- Set up the workpiece: Securely clamp the workpiece to the milling machine table using appropriate clamps or vices.
- Select the desired spindle speed: Adjust the variable speed control to match the cutting tool and material.
- Adjust the quill height: Raise or lower the quill to the desired cutting depth.
- Engage power feed (if needed): Turn on the power feed for automatic table movement.
- Begin milling: Carefully operate the machine controls to perform the desired milling operation.
- Monitor cutting conditions: Observe the cutting process for any issues and make adjustments as necessary.
- Coolant application (if required): Use coolant to improve cutting performance and tool life.
- Clean up: Remove chips and debris after completing the milling operation.
BENEFITS OF USING JET JTM-1254VS WITH X POWERFEED & AIR POWER DRAWBAR MILL (698026):
- Increased productivity: Enhanced efficiency with X-axis power feed and variable speed control.
- Improved accuracy: Precision-ground ways and table ensure precise machining.
- Reduced maintenance: Automatic lubrication system extends machine life.
- User-friendly operation: Quick nut spindle feed and easy-to-use controls simplify tasks.
- Versatile capabilities: Handles a wide range of milling applications.
FEATURES:
- Certified Meehanite castings
- Precision bored and honed milling head
- High precision Class 7 spindle bearings
- Quick Spindle Feed Nut
- Three-stage power downfeed with automatic stop
- Heavy-duty spindle brake
- Precision hardened and ground ways and table
- Three Precision ground t-slots
- Turcite B on X & Y Axis
- Adjustable gibs throughout
- CSA/CUS certified
- Spindle Guard
- Spindle Brake for rapid stopping of the spindle
- Automatic Lubrication every 180 minutes
- JET exclusive new casting for easy leveling
- Two 115V outlets for Powerfeeds
- Standard equipment: Spindle Safety Guard, Led Machine Lamp, Dual Locks, Chip Pan, Draw bar, Tool box with tools
