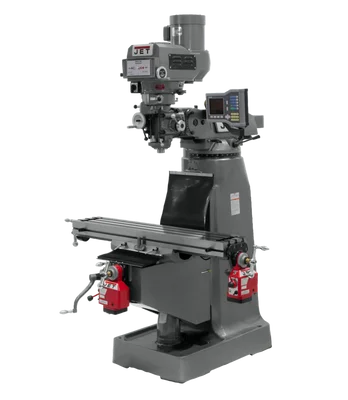

Jet JTM-2 Mill w/2HP, 1PH, 230V w/ XY Table Powerfeed (690017)

Description

The Jet JTM-2 Mill w/2HP, 1PH, 230V w/ XY Table Powerfeed (690017) is a versatile and robust machine tool designed to elevate your metalworking capabilities. With its 2HP motor, precision-engineered components, and X-Y table power feeds, this milling machine empowers both professionals and hobbyists to achieve exceptional results in their projects.

KEY FEATURES AND BENEFITS:

• Powerful and Precise: The 2HP motor and R-8 spindle taper deliver the power and accuracy needed for a wide range of milling operations.
• Enhanced Control: X-Y table power feeds streamline your workflow, enabling precise and efficient movement along both axes.
• Durable Construction: Built with Meehanite castings, this machine ensures long-lasting performance and stability.
• Precision Components: High-precision Class 7 spindle bearings and a chrome-plated quill contribute to smooth operation and accurate results.
• Convenient Features: The built-in coolant tank, one-shot lubrication system, and way covers simplify maintenance and enhance the machine’s longevity.

SPECIFICATIONS:

• Motor: 2 HP, 115/230V, 1 Ph, Prewired 230V
• Spindle Speeds: 8
• Spindle Taper: R-8
• Quill Diameter: 3-3/8″
• Head Movement: 90° R & L, 45° F & B
• Max Distance Spindle to Table: 17-1/2″
• Table Longitudinal Travel: 23-7/8″
• Table Cross Travel: 12-1/2″
• Collet Capacity: 1/8″ – 7/8″
• T-Slots: 3 – 5/8″
• Table Weight Capacity: 550 lbs
• Travel of Knee: 14-1/2″
• Travel of Ram: 13-3/8″

HOW TO USE:

1. Preparation: Ensure the machine is properly leveled and securely mounted.
2. Workpiece Setup: Secure your workpiece to the table using clamps or a vise.
3. Tool Selection: Choose the appropriate milling cutter for your desired operation.
4. Speed and Feed Selection: Consult the machine’s manual or reference charts to determine the correct spindle speed and feed rate for your material and tool.
5. Operation: Start the machine and carefully engage the power feed for X and Y axes.
6. Monitoring: Continuously monitor the cutting process and make adjustments as needed.
7. Safety: Always wear appropriate safety gear, including eye and ear protection.

BENEFITS OF USING THE Jet JTM-2 Mill w/2HP, 1PH, 230V w/ XY Table Powerfeed (690017):

• Versatility: Tackle a wide range of milling operations, from slotting and facing to drilling and boring.
• Efficiency: X-Y table power feeds improve productivity and reduce operator fatigue.
• Precision: Achieve precise results thanks to the machine’s rigid construction and high-precision components.
• Durability: Built to last with Meehanite castings and quality components.

FEATURES:

• Precision bored and honed milling head
• Three-stage power downfeed with automatic stop
• Internal coolant tank
• One-shot lubrication system
• Way covers
• Tool box with tools
