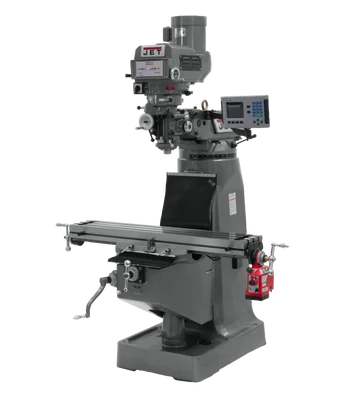

Jet JTM-4VS-1 Mill With ACURITE 203 DRO With X-Axis Powerfeed (690179)

Description

The Jet JTM-4VS-1 Mill With ACURITE 203 DRO With X-Axis Powerfeed (690179) is a versatile and powerful machine for milling various materials in your workshop or garage. This variable speed mill features a rigid Meehanite cast iron base that minimizes vibration and ensures accurate cuts. The JTM-4VS-1 comes in two versions, one with an ACU-RITE 203 DRO and another with a 200S DRO (both featuring digital readouts for precise positioning). Both models include an X-axis powerfeed for automated table movement along the X-axis.

KEY FEATURES AND BENEFITS:

• Variable Speed Milling: Delivers optimal cutting speeds for different materials.
• Rigid Meehanite Cast Iron Base: Minimizes vibration for clean and precise cuts.
• Precision Bored and Honed Milling Head: Ensures machining accuracy.
• Large Diameter Chromed Quill: Provides smooth and precise quill travel.
• High-Precision Class 7 Spindle Bearings: Offers long-lasting performance and durability.
• X-Axis Powerfeed: Automates table movement for efficient machining.
• Digital ReadOut (DRO): (either ACU-RITE 203 or 200S depending on the model) allows for precise positioning of the cutting tool along multiple axes.
• Internal Spindle Cooling: Maintains optimal spindle temperature for extended use.
• Satin Chrome Finished Dials: Enhance control and user experience.
• 2-Year Warranty: Ensures peace of mind with comprehensive coverage.

SPECIFICATIONS:

• Motor: 2 HP, 115V/230V, single-phase
• Spindle Taper: R8
• Spindle Speeds: 60 – 4,200 RPM
• Quill Travel: 5 inches
• Table Size: 9 x 49 inches
• Overall Dimensions (L x W x H): 66 x 63 x 85 inches
• Weight: 2420 lbs.

HOW TO USE:

1. Assembly: Refer to the user manual for detailed assembly instructions. Secure the mill to a stable workbench and ensure proper electrical connection.
2. Workpiece Setup: Secure your workpiece to the mill table using clamps and a vise suitable for the material and size.
3. Tooling Selection: Choose the appropriate milling cutter based on the material and desired cut profile. Install the cutter securely in the spindle.
4. Speed and Feed Selection: Consult cutting charts or manufacturer recommendations to set the optimal spindle speed and feed rate for your material and desired cut.
5. Positioning: Use the handwheels or digital readouts (DRO) to precisely position the cutting tool relative to the workpiece.
6. Power On and Operation: Engage the spindle and powerfeed (if using) according to the machine controls. Begin machining with smooth and controlled movements.

BENEFITS OF USING Jet JTM-4VS-1 Mill With ACURITE 203 DRO With X-Axis Powerfeed (690179):

• Precise Machining: Delivers accurate and clean cuts for various projects.
• Versatility: Handles a wide range of milling tasks on different materials.
• Durable Construction: Built to last with high-quality components.
• Efficient Operation: Variable speed control and X-axis powerfeed optimize machining processes.
• User-Friendly Controls: Intuitive controls and digital readouts (DRO) simplify operation.

FEATURES:

• Meehanite cast iron base
• Variable speed motor
• Precision bored and honed milling head
• Large diameter chromed quill
• High-precision Class 7 spindle bearings
• Internal spindle cooling
• X-axis powerfeed
• Digital ReadOut (DRO) (either ACU-RITE 203 or 200S)
• Satin chrome finished dials
• Includes drawbar, toolbox with tools, and way covers
