Description

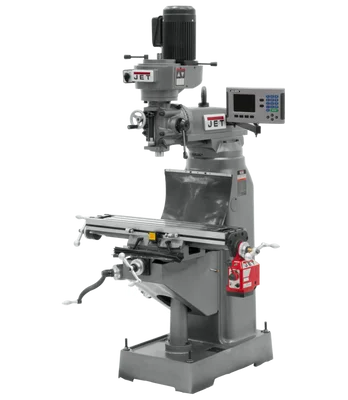

The Jet JVM-836-3 Mill 3-Axis ACU-RITE 200S DRO(K) XY-Axis Pwrfds (690047) is a versatile vertical knee mill designed for precise metalworking applications.
KEY FEATURES AND BENEFITS:
- Accurate Machining: The precision-bored head and hardened table ensure dimensional accuracy for your projects.
- Effortless Control: The 3-axis DRO (Digital ReadOut) by Acu-Rite 200S provides real-time position data for improved control.
- Automated Efficiency: X and Y-axis power feeds enable automated movement along the table, saving time and effort.
- Safe Operation: Locks on all movable surfaces enhance user safety during operation.
- Durable Construction: The cast iron base and column provide a rigid platform for demanding tasks.
- Versatility: With 10 spindle speeds, the mill tackles various materials and applications.
SPECIFICATIONS:
- Table Size: 7-7/8 x 35-3/4 in.
- Quill Diameter: 3-3/8 in.
- Spindle Speeds: 10 (120 – 1,550 RPM)
- Table Travel (Longitudinal/Cross): 22-1/4 in. / 9-1/2 in.
- Motor: 1-1/2 HP, 230V, 3-Phase
- Weight: 1,610 lbs.
HOW TO USE:
- Setup: Secure your workpiece to the table using clamps or a vise.
- Positioning: Utilize the DRO to precisely position the cutting tool (end mill, drill bit, etc.) relative to the workpiece.
- Machining: Select the appropriate spindle speed and feed rate based on the material and desired cut. Engage the power feed (if applicable) and initiate the cutting operation.
- Monitoring: Continuously monitor the cutting process and adjust parameters as needed for optimal results.
- Safety: Always wear safety glasses and appropriate gloves when operating the mill.
BENEFITS OF USING Jet JVM-836-3 Mill 3-Axis ACU-RITE 200S DRO(K) XY-Axis Pwrfds (690047):
- Achieve high-precision metalworking results for components and prototypes.
- Increase productivity with automated X and Y-axis power feeds.
- Enhance operator safety with a focus on secure workholding and machine lockdowns.
- Tackle various materials effectively with a wide range of spindle speeds.
- Invest in a reliable machine backed by a 2-year JET warranty.
FEATURES:
- Precision bored and honed milling head
- Large diameter quill with chrome finish
- High precision spindle bearings
- Over 10 inches of ram travel
- Graduated scale on column for easy positioning
- Precision ground dovetail ways for smooth travel
- One-shot lubrication system for efficient maintenance
- Way covers for protection against debris
- Drawbar for secure tool attachment
- Toolbox and tools included
