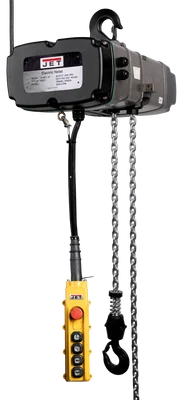

Jet TS050-010 1/2-Ton Electric Hoist w/Trolley & 4BTN PEND (140233K)

Description

Jet TS050-010 1/2-Ton Electric Hoist w/Trolley & 4BTN PEND (140233K) is a reliable and powerful tool designed to safely lift and move heavy loads. Equipped with essential safety features and built to last, this hoist is perfect for industrial and commercial applications.

KEY FEATURES AND BENEFITS:

• Safety First: 2-in-1 mechanical brake and overload protection prevent accidents.
• Precise Control: Patented gear limit switch and two-speed motor for accurate lifting and lowering.
• Durable Construction: IP55 TEFC motor with Class F insulation withstands harsh environments.
• Efficient Operation: 5 pocket chain sprocket reduces vibration and chain wear.
• Easy to Use: IP65 rated pendant control for convenient operation.

SPECIFICATIONS:

• Model: 140233K TS050-010
• Capacity: 1/2 Ton (1100 lbs)
• Duty Cycle: 40% at 500 lbs, 20% at 1100 lbs
• Lift Height: 10 ft
• Lifting Speed: 8 ft/min (low), 33 ft/min (high)
• Motor: 1.5 HP, 230V, 3PH
• Weight: 117 lbs
• Dimensions: 26.77″ L x 29.53″ W x 23.62″ H

HOW TO USE:

1. Inspect: Inspect the hoist for any damage before use.
2. Attach Load: Attach the load securely to the hoist hook.
3. Power On: Turn on the power and test the hoist by lifting the load a short distance.
4. Operate: Use the up and down buttons on the pendant control to operate the hoist.
5. Lower and Turn Off: Lower the load carefully and turn off the power when finished.

BENEFITS OF USING JET TS050-010 1/2-TON ELECTRIC HOIST W/TROLLEY & 4BTN PEND (140233K):

• Increased Efficiency: Quickly and safely lift and move heavy loads.
• Improved Safety: Built-in safety features protect operators and equipment.
• Reduced Labor Costs: Efficiently handle heavy materials with minimal effort.
• Enhanced Productivity: Streamline your workflow with reliable lifting equipment.

FEATURES:

• Powerful 1.5 HP motor for heavy-duty lifting
• Durable construction for long-lasting performance
• Smooth operation with 5 pocket chain sprocket
• Easy-to-read controls for precise operation
• Compact design for easy storage and transportation
