Description

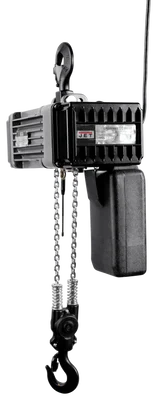

Jet TS050-010 3PH 460V 1/2-Ton Electric Hoist w/ 10′ Lift (144001) is a robust electric hoist designed for industrial applications that demand reliability and safety. This 1/2 ton capacity hoist features a 10-foot lift, making it suitable for various lifting tasks.
KEY FEATURES AND BENEFITS:
- Safety First: Equipped with a mechanical brake, overload protection, and a DC motor brake, this hoist prioritizes operator safety.
- Durable Construction: The IP55 TEFC motor and Class F insulation ensure long-lasting performance in harsh environments.
- Efficient Operation: Two-speed operation allows for precise load handling, while the 5 pocket chain sprocket reduces vibration and chain wear.
- Reliable Performance: The patented gear limit switch prevents overloading, and the built-in heat protection safeguards internal components.
SPECIFICATIONS:
- Capacity: 1/2 ton (1100 lbs)
- Duty Cycle: 40/20
- Duty Cycle Rating: H4
- Lift: 10 feet
- Lifting Speed: 8/33 feet per minute
- Motor: 1.5 HP, 460V, 3PH
- Weight: 117 lbs
- Headroom: 19-2/3 inches
- Overall Width: 15-1/6 inches
- Motor Current: 14-3/4 amps
- Dimensions: Length 26.772 inches, Width 19.685 inches, Height 23.622 inches
HOW TO USE:
- Inspect: Check the hoist for any damage or wear before use.
- Connect: Connect the power supply cord to a properly grounded 460V, 3-phase outlet.
- Attach Load: Securely attach the load to the hoist hook.
- Engage Speed: Engage the desired lifting speed using the pendant control.
- Lift Load: Lift the load smoothly and gradually.
- Lower Load: Lower the load carefully, ensuring proper control.
- Disconnect: Disconnect the power supply when finished.
BENEFITS OF USING JET TS050-010 3PH 460V 1/2-TON ELECTRIC HOIST W/ 10′ LIFT (144001):
- Enhance Workplace Safety: With multiple safety features.
- Improve Efficiency: With two-speed operation and quick lifting/lowering.
- Increase Productivity: Through reliable and durable construction.
- Extend Equipment Life: With built-in heat protection and chain sprocket design.
FEATURES:
- Mechanical brake
- Overload protection
- DC motor brake
- Patented gear limit switch
- IP55 TEFC motor
- Class F insulation
- 5 pocket chain sprocket
- Built-in heat protection
- IP65 rated pendant control
- Two-speed operation
- 10 ft power supply cord
