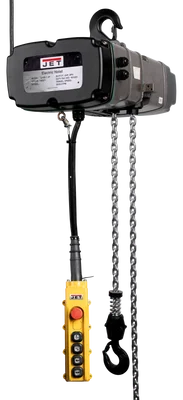

Jet TS100-015 1-Ton Electric Hoist w/Trolley & 4BTN PEND (140237K)

Description

The Jet TS100-015 1-Ton Electric Hoist w/Trolley & 4BTN PEND (140237K) is a reliable and powerful lifting equipment designed for industrial use. This hoist features a robust construction and advanced safety features to ensure optimal performance and operator protection.

KEY FEATURES AND BENEFITS

• Safety First: Equipped with a combined mechanical brake and overload protection system to prevent accidents.
• Precise Control: Patented gear limit switch and DC motor brake for accurate and safe lifting/lowering.
• Efficient Operation: Two-speed motor for versatile lifting applications.
• Durable Construction: IP55 TEFC motor with Class F insulation for harsh environments.
• Smooth Performance: 5-pocket chain sprocket reduces vibration and extends chain life.
• Easy Control: IP65 rated waterproof pendant for convenient operation.

SPECIFICATIONS

• Capacity: 1 ton (2200 lbs)
• Lift Speed: 26 ft/min (fast), 7 ft/min (slow)
• Lift Height: 15 ft
• Motor: 2HP, 230V, 3-phase
• Duty Cycle: 40%/20%
• Duty Cycle Rating: H4
• Max. Number of Starts per Hour: 240
• Max. On Time per Hour: 30 min
• Weight: 294 lbs
• Dimensions: 29.528 in x 21.654 in x 23.622 in
• Country of Origin: Taiwan

HOW TO USE

1. Inspect the Hoist: Check for any damage or wear before use.
2. Attach the Load: Securely hook the load to the hoist’s hook.
3. Turn on the Power: Connect the power supply cord and switch on the power.
4. Operate the Pendant: Use the up and down buttons to lift or lower the load.
5. Monitor the Load: Keep a close watch on the load during lifting and lowering.
6. Turn off the Power: Once the task is complete, switch off the power and disconnect the power supply cord.

BENEFITS OF USING JET TS100-015 1-TON ELECTRIC HOIST W/TROLLEY & 4BTN PEND (140237K)

• Increased Productivity: Through efficient lifting operations.
• Enhanced Workplace Safety: With multiple safety features.
• Durable Construction: For long-term use in demanding environments.
• Versatile Lifting Capabilities: With two-speed motor.
• Easy-to-Use Pendant Control: For convenient operation.

FEATURES

• Combined Mechanical Brake and Overload Protection: For safety and durability.
• Patented Gear Limit Switch: For precise control.
• DC Motor Brake: Ensures power failure safety.
• Two-Speed Motor: For versatile lifting.
• IP55 TEFC Motor: With Class F insulation for harsh environments.
• 5-Pocket Chain Sprocket: Reduces vibration and extends chain life.
• IP65 Rated Pendant Control: For waterproof and user-friendly operation.
• Built-in Heat Protection: For extended lifespan.
• 10ft Power Supply Cord: For flexible placement.
