Description

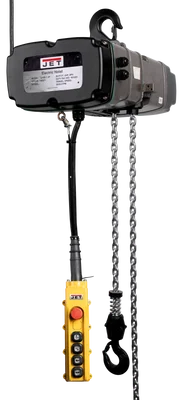

The Jet TS100-020 1-Ton Electric Hoist w/ Trolley & 4BTN PEND (140238K) is a reliable and powerful lifting tool designed for industrial applications. This hoist is built with safety and efficiency in mind, making it suitable for various lifting tasks.
KEY FEATURES AND BENEFITS:
- Enhanced Safety: Equipped with a two-in-one mechanical brake and overload protection system to prevent accidents and protect the hoist.
- Precise Lifting: Features a two-speed motor for controlled and efficient lifting operations.
- Durable Construction: Built with an IP55 TEFC motor and IP65 rated waterproof pendant control for long-lasting performance in harsh environments.
- Smooth Operation: The 5-pocket chain sprocket reduces vibration and ensures smooth lifting and lowering of loads.
SPECIFICATIONS:
- Capacity: 1 ton (2200 lbs)
- Duty Cycle: 40% / 20% (H4)
- Lift: 20 ft
- Lifting Speed: 26 ft/min (high speed), 7 ft/min (low speed)
- Motor: 2 HP, 230V, 3-phase
- Weight: 266 lbs
- Headroom: 21 inches
- Overall Width: 16-1/7 inches
- Motor Current: 5.6 / 11 amps
- Dimensions: Length: 29.528 inches, Width: 21.654 inches, Height: 23.622 inches
- Net Weight: 172 lbs
- Country of Origin: Taiwan
HOW TO USE:
- Inspect the hoist: Before use, carefully examine the hoist for any visible damage or wear. Check the chain, hook, and electrical components for proper condition.
- Connect to power: Ensure the hoist is connected to a stable power supply that meets the specified voltage and phase requirements.
- Attach the load: Securely attach the load to the hoist hook using appropriate lifting equipment.
- Operate the pendant control: Use the up and down buttons on the pendant control to lift or lower the load. The two-speed function allows for precise control.
- Monitor the load: Continuously observe the load during the lifting operation to ensure safety.
- Lower the load: Carefully lower the load to the desired position using the pendant control.
- Disconnect power: After completing the lifting task, disconnect the hoist from the power supply.
BENEFITS OF USING JET TS100-020 1-TON ELECTRIC HOIST W/ TROLLEY & 4BTN PEND (140238K):
- Increased productivity: Efficient lifting operations enhance overall productivity.
- Improved worker safety: Built-in safety features protect operators and equipment.
- Reduced downtime: Durable construction and reliable performance minimize maintenance needs.
- Enhanced precision: Two-speed motor control allows for accurate lifting and lowering.
- Cost-effective solution: Suitable for a variety of industrial lifting needs at a reasonable cost.
FEATURES:
- Patented gear limit switch prevents overloading and damage.
- DC motor brake ensures safety in case of power failure.
- Built-in heat protection safeguards the hoist from overheating.
- Comes with a 10ft power supply cord for convenient operation.
- Versatile design suitable for various industrial applications.
