Description
DESCRIPTION

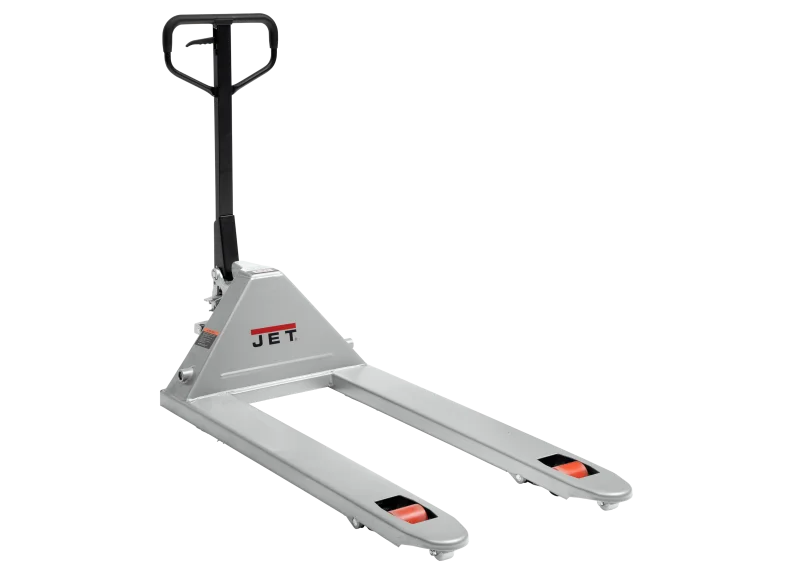

JET® PTW Series Pallet Trucks are available in 5 different configurations. Each JET PTW Pallet Truck has a low profile of less than 3 inches, varying widths of 20 to 27 inches, and different lengths from 36 to 48 inches. High quality welded steel construction gives the PTW series a capacity of 6,000 pounds. The 200 degree turning radius increases maneuverability and the easy-to-use fingertip controls permit single handed operation. JET PTW Series Pallet Trucks are built to handle heavy lifting.
- Lower material in a controlled decent with either hand or foot control for operator convenience
- Overload Protection prevents lifting loads past maximum capacity
- Polyurethane 6-1/4 x 2 inch steer wheels for non marking of floors and quieter rolling
- Pump designed so that cylinder will not extend beyond maximum height
- Pumps designed for any industrial environment
SPECIFICATIONS
| Capacity (Lbs.) | 6600 |
|---|---|
| Fork Width (In.) | 6-1/4 |
| Load Wheel Size (OD x W) (In.) | 2-7/8 x 3-11/16 |
| Lowered Height (In.) | 2.95 |
| Maximum Height (In.) | 7-1/2 |
| Overall Dimensions (L x W x H) (In.) | 63 x 27 x 48 |
| Overall Fork Dimensions (L x W) (In.) | 48 x 27 |
| Prop 65 | Cancer and Reproductive Harm |
| Steer Wheel Size (In.) | 6-1/4 x 2 |
| Turning Radius (Deg) | 200 |
| Weight (Lbs.) | 151 |
