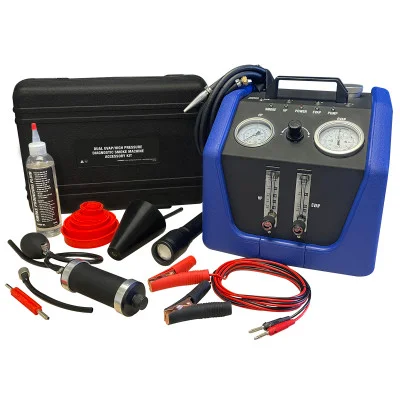

Mastercool Dual EVAP High Pressure Diagnostic Smoke Machine (43065)

Description

Mastercool Dual EVAP High Pressure Diagnostic Smoke Machine (43065)

Mastercool 43065 Dual Evap/High Pressure Diagnostic Smoke Machine is a versatile diagnostic tool designed for a comprehensive range of automotive leak testing. This machine is particularly adept at diagnosing hard-to-find leaks in systems such as EVAP, turbo/intakes, and heavy-duty trucks. The unit’s built-in internal compressor allows for mobility, enabling on-site mobile repairs without the need for shop air, though it also supports connections to shop air and inert gases.

Engineered for today’s automotive technicians, the Mastercool 43065 efficiently locates and repairs leaks across a vast array of vehicle systems including intakes, exhausts, vacuum lines, cooling systems, manifolds, catalytic converters, brake boosters, and passenger compartments. This tool is essential for ensuring proper operation and preventing costly future repairs, making it a valuable addition to any professional toolkit.

Key Features & Benefits:

• Versatility: Suitable for EVAP, turbo/intake, and heavy-duty truck systems. Includes adapters for both low pressure EVAP and universal high pressure testing.
• Mobility: Features an internal compressor for field use, along with options for shop air and inert gases.
• Quick Smoke Generation: Produces smoke rapidly to shorten diagnostic times.
• Safety Features: Includes a built-in safety pressure relief valve and pressure regulated at 0.5 PSI for safe EVAP testing.
• Dual Pressure Gauges: Equipped with two large, easy-to-read gauges; one for EVAP (0-30 in. H2O) and one for high pressure (0-30 PSI) applications.
• Durability: Compact, heavy-duty design ensures years of reliable service.
• Convenience: Comes with a high-intensity, battery-operated smoke illuminating telescoping flashlight, 10’ smoke injection hose, and 10’ power cables with durable clamps. Velcro strap included for tidy storage.
• Eco-Friendly: Uses non-toxic and non-corrosive smoke.

Specifications:

• Voltage: 12 VDC
• Input Pressure: Max 100 psi (7 bar)
• Output Pressure: EVAP: 12 – 14 inH2O (30 – 35 mBar), HP internal pump: Max 22 psi (150 kPa), HP external: Max 28 psi (190 kPa)
• Safety Pressure Relief: 120 (±5) psi
• Auto Shut-off: 5 minutes
• Oil Fill Line Indicator: 3.4 oz (100 ml ±10 ml)
• Flow Meter: 0 – 0.040 in. (0 – 1.0 mm)
• Dimensions: 11.8 x 9.5 x 11 in
• Weight: 10.13 lbs (smoke machine only)
