Description

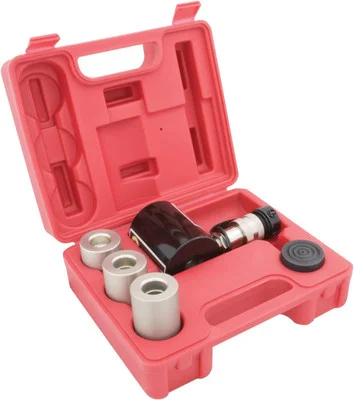

Omega 72101 Cylinder Kit is Omega 10 Ton hydraulics single acting low profile cylinder kit. It is designed for jobs required pushing, spreading, and pressing for up to 10 ton capacity.
In the cylinder kit, it includes the stackable 1, 2, 3 inch aluminum adapters that snap into the base of the ram. Also, there is a high flow ball coupler to connect the hydraulic pump (not included) to advance and retract the cylinder.
At the same time, the specially designed return spring ensures a quick retraction and extends the lift of the spring.
All the components of the cylinder kit are stored in the convenient storage case to keep cylinder and adapters together. The compact design for use in confined spaces.
– Specially Designed Return Spring
– Including High Flow Coupler & Stackable 1, 2, 3 inches aluminum adapters
– Rod Wiper helps Seal Out Dirt and Contamination
– Convenient Storage Case
Specifications
– Cylinder Capacity: 10 Ton
– Stroke: 1.5 Inch
– Cylinder Effective Area: 2.35 in²
– Internal Pressure at Capacity: 8511 PSI
– Collapsed Height: 3.48 inch; Extended Height without Adapter: 4.98 inch
– Cylinder Housing Dia: 2.75 inch
– Ram Plunger Dia: 1.50 inch
– GW: 10 Lbs
