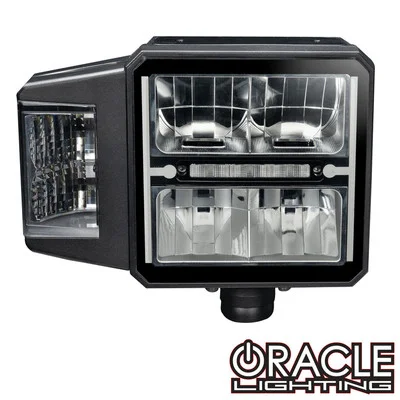

Oracle Lighting Multifunction LED Plow Headlight with Heated Lens (2914-001)

Description

Oracle Lighting Multifunction LED Plow Headlight with Heated Lens (2914-001) is engineered for the toughest conditions, providing reliable and precise lighting in harsh environments. Designed with advanced LED technology, this headlight features low beam, high beam, turn signal, and daytime running light functionalities.

Constructed with stainless steel anti-corrosive components, this headlight is built to last. The modular turn signal indicator can be positioned in multiple configurations, making it versatile for various applications.

• Specifications and Dimensions
  • High Beam: 48W
  • Low Beam: 24W
  • Turn Signal: 12W
  • Daytime Running Light: 3W
  • High Beam Projection: 1 Lux @1000’
  • Low Beam Projection: 1 Lux @ 550’
  • Input Voltage: 9V – 30V DC
  • Ingress Protection: IP68



• Key Features and Benefits
  • Multifunction design with DRL and turn signal capabilities
  • Patented de-icing lens heater system
  • Precision LED reflector facing technology for optimal light output
  • Dual mounting options: bottom mount/rear mount
  • Stainless steel anti-corrosive components for durability
  • Under/over voltage and reverse polarity protection
  • LED lifespan of 80,000+ hours
  • 1-year warranty

• Heater Function:
  • The heating function activates automatically when the headlight is turned on and the ambient temperature is below freezing.
  • A yellow LED indicates when the heating function is active.
  • The heating function automatically shuts off when the lens cover temperature reaches 100°.



• In the Box:
  • (1) Multifunction LED Plow Headlight with Heated Lens
  • (1) Post Mount
  • (1) Turn Signal Module
  • Installation Hardware
