Paragon Pro 6‘x22″ Deck 11‘ Tele-Tower Adjust. Work Platform (1101-22)

Description

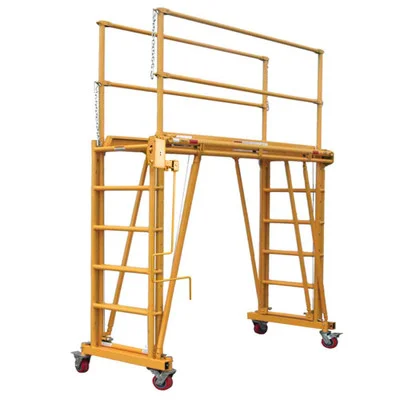

The Paragon Pro 6’x22″ Deck 11′ Tele-Tower Adjust. Work Platform (1101-22) is a highly adaptable and efficient solution for professionals requiring a stable, elevated workspace. This unit offers a safe alternative to traditional ladders and scaffolding, providing a spacious 6-foot deck that can be precisely adjusted in height. Its hand-crank winch system allows for quick and effortless raising and lowering of the platform, enabling workers to reach a wide range of heights for various tasks. The design prioritizes safety, with integral outriggers that extend for enhanced stability and a complete set of guardrails and safety chains to secure the work area. As a mobile unit, it can be easily transported from one location to another, even fitting through standard doorways when fully collapsed. This combination of mobility, height flexibility, and safety features makes the Paragon Pro Tele-Tower a valuable piece of equipment for a variety of applications.

KEY FEATURES AND BENEFITS:

• Highly adaptable adjustable work platform for elevated tasks.
• 6-foot spacious deck for comfortable working space.
• Hand-crank winch system for smooth and effortless height adjustment.
• Integral outriggers for enhanced stability during elevated use.
• Guardrails and safety chains included for secure working environment.
• Mobile design allows for easy transport and passage through standard doorways.
• Safe, efficient, and cost-effective alternative to traditional ladders and scaffolding.

SPECIFICATIONS:

• Model Number: 1101-22
• Deck Dimensions: 6 ft. (72 in.) L x 22 in. W
• Deck Height Range: 2 ft. to 11 ft.
• Maximum Working Height: Up to 18 ft.
• Maximum Load Capacity: 1000 lbs
• Weight: 470 lbs
• Base Dimensions (Fully Extended): 80 in. L x 35 in. W

HOW TO USE:

1. Placement and Setup: Roll the Tele-Tower to your desired work location. Ensure the surface is level and firm. Engage the brakes on all four swivel casters to prevent movement.
2. Extend Outriggers: Extend the integral outriggers for maximum stability, especially at higher elevations.
3. Raise the Platform: Use the hand-crank winch to raise the deck to the desired height in 6-inch increments. Do not raise or lower the platform with a person on it.
4. Secure the Work Area: Install guardrails, safety chains, and anti-sway braces. Ensure all components are properly secured before use.
5. Work and Lower: Perform tasks on the platform. When finished, climb down, lower the deck using the winch, release caster brakes, and move the unit as needed.

BENEFITS OF USING PARAGON PRO 6’X22″ DECK 11′ TELE-TOWER ADJUST. WORK PLATFORM (1101-22):

• Improves safety by providing a stable, enclosed elevated workspace.
• Reduces risk of falls compared to ladders and traditional scaffolding.
• Compact design allows for quick setup and mobility by a single person.
• Cost-effective solution compared to renting lift equipment.
• Strong steel construction supports two workers with tools.
• Time-saving mobility allows easy transitions between tasks.

FEATURES:

• Durable hand-crank winch with steel cables for reliable height control.
• Tool-free assembly designed for easy, single-person setup.
• Engineered to comply with OSHA and ANSI safety standards.
• Compact folding structure for portability through standard doorways.
• Robust all-steel build for enhanced stability and durability.
• Outriggers extend to improve balance and prevent tipping.
• Heavy-duty swivel casters provide full mobility with locking brakes.
• Adjustable deck height ranging from 2 ft. to 11 ft.
