Description

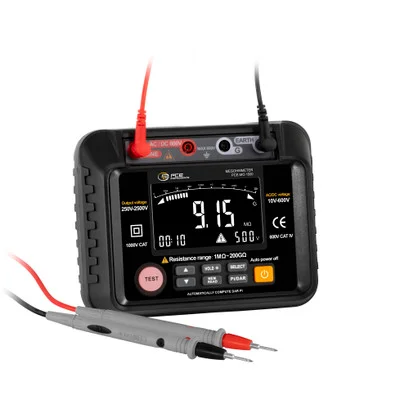

PCE Instruments 2.5KV Insulation Resistance Tester (PCE-MO 1500) is a powerful tool for testing insulation resistance in industrial, commercial, and residential electrical systems. With selectable test voltages from 250V to 2500V and resistance measurement capabilities up to 200 GΩ, this tester is ideal for high-voltage insulation diagnostics.
With internal memory for 100 data records and a backlit LCD display, this insulation meter enhances efficiency in routine maintenance, troubleshooting, and compliance testing of motors, cables, switches, and transformers.
- Specifications and Dimensions
- Test Voltages: 250V, 500V, 1000V, 2000V, 2500V
- Insulation Resistance Measurement: Up to 200 GΩ
- AC/DC Voltage Measurement: 10 – 600V
- Accuracy: ±(5% of Rd +10 digits)
- Measurement Functions: PI, DAR, HOLD
- Data Storage: Internal memory for 100 records
- Display: 3.7-inch LCD with backlight
- Safety Rating: EN 61010-1, CAT III 1000V, CAT IV 600V
- Power Supply: 8 x 1.5V AA batteries
- Operating Temperature: 0 … 35°C (0 … 75% RH)
- Weight: 651 g
- Dimensions: 140 x 180 x 70 mm
- Key Features and Benefits
- Measures insulation resistance up to 200 GΩ for comprehensive electrical testing
- Selectable test voltages for flexibility in different applications
- Advanced measurement functions including PI and DAR for in-depth analysis
- Data hold and internal memory for storing up to 100 test results
- Includes
- 1 x PCE-MO 1500 Insulation Resistance Tester
- 2 x Crocodile Clips
- 3 x Test Leads (1m each)
- 8 x 1.5V AA Batteries
- 1 x Carrying Case
- 1 x User Manual
