Description

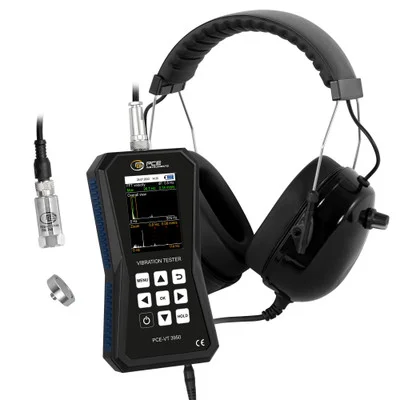

PCE Instruments Accelerometer is a professional handheld device for precise vibration measurement in industrial environments. Designed for machine condition monitoring, this accelerometer measures vibration displacement, velocity, and acceleration with high accuracy. The built-in data logger, FFT analysis, and route measurement function make it ideal for maintenance and repair tasks.
It features automatic ISO 10816-3 evaluation, allowing users to quickly assess machine conditions. The internal memory stores measured data, which can be transferred via micro-USB for further analysis using the included software.
- Specifications and Dimensions
- Acceleration Measurement:
- Range: 0.0 – 399.9 m/s² / 0.0 – 15744 in/s²
- Resolution: 0.1 m/s² / 3.94 in/s²
- Accuracy @ 160 Hz: ±2%
- Frequency Range: 10 Hz – 10 kHz
- Velocity Measurement:
- Range: 0.00 – 399.9 mm/s / 0.00 – 15.74 in/s
- Resolution: 0.1 mm/s / 0.0039 in/s
- Accuracy @ 160 Hz: ±2%
- Frequency Range: 10 Hz – 1 kHz
- Displacement Measurement:
- Range: 0.000 – 3.9 mm / 0.000 – 0.154 in
- Resolution: 1 µm / 39.4 µin
- Accuracy @ 160 Hz: ±2%
- Frequency Range: 10 Hz – 200 Hz
- Rotational Speed Measurement:
- Range: 600 – 50000 RPM
- FFT Analysis:
- Acceleration: 10 Hz – 8 kHz
- Velocity: 10 Hz – 1 kHz
- Accuracy @ 160 Hz: ±2%
- Number of FFT Lines: 2048
- Data Logging and Storage:
- Manual Memory: 99 folders, each with 50 measured values
- Data Logger: 50 storage locations, each with 43,200 measured values
- Measurement Interval: Adjustable from 1 second to 12 hours
- General Features:
- Measurement Parameters: RMS, Peak, Peak-Peak, Crest Factor
- Route Measurement: Supports up to 100 routes, each with 100 machines and 1000 measurement points
- Units: Switchable between metric and imperial
- Display: 2.8-inch LC screen
- Available Menu Languages: English, German, French, Spanish, Italian, Dutch, Portuguese, Turkish, Polish, Russian, Chinese, Japanese
- Power Supply: Internal LiPo battery (3.7V, 2500 mAh) or USB 5V DC, 500 mA
- Operating Time: 15 – 20 hours (depending on display brightness)
- Operating Conditions: -20 … +65 °C / -4 … 149 °F, 10% RH – 95% RH (non-condensing)
- Protection Class: IP52
- Dimensions: 165 x 85 x 32 mm / 6.5 x 3.3 x 1.3″
- Weight: 239 g / 8.4 oz
- Vibration Sensor:
- Resonance Frequency: 24 kHz
- Transverse Sensitivity: ≤ 5%
- Destruction Limit: 5000 g (peak)
- Operating and Storage Temperature: -55 … +150 °C / -67 … 302 °F
- Housing Material: Stainless Steel and Plastic
- Mounting Thread: ¼ – 28“
- Dimensions: Ø 17 x 46 mm / 0.67 x 1.8″
- Weight (without cable): 119 g / 4.2 oz
- Key Features and Benefits
- Accurate vibration measurement for maintenance and monitoring
- Automatic ISO 10816-3 evaluation for quick condition assessment
- FFT analysis for detailed frequency spectrum visualization
- Route measurement function for structured data collection
- Rechargeable LiPo battery ensures up to 20 hours of continuous use
- Micro-USB connectivity for seamless data transfer and firmware updates
- Multi-language menu and intuitive interface for ease of use
- IP52-rated for industrial applications
