Description

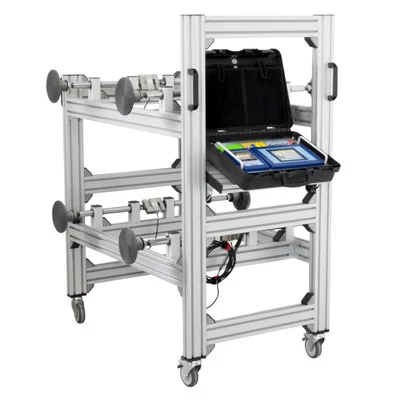

PCE Instruments Device Clamp Force Gauge (PCE-4PCFM) is a precision instrument designed for measuring the distribution of clamp force in large industrial clamps. With its four-point measurement capability, it ensures accurate force distribution to prevent damage during the transportation of large goods.
This clamp force gauge provides real-time measurement of individual and total forces, displayed on a graphical touchscreen. It offers readings in kg, N, kN, and lb, making it adaptable for different measurement standards.
- Specifications and Dimensions
- Maximum Force: 30,000 N / 3,000 kg / 3t
- Measurement Resolution: 1 kg / 2.2 lb
- Measurement Uncertainty: 0.5% of full scale
- Display: 120 x 90 mm / 4.7 x 3.5″ graphic touchscreen
- Measuring Surface: Ø158 mm / 6.2″ self-leveling
- Adjustable Measuring Points:
- x-axis: 320 – 1050 mm / 12.6 – 41.3″
- y-axis: 300 – 1250 mm / 11.8 – 49.2″
- z-axis: 1000 – 1050 mm / 39.3 – 41.3″
- Power Supply: Rechargeable battery (up to 45 hours) / Charging time: ~10 hours
- Weight: Approx. 130 kg / 286 lb
- Construction: 45 x 90 mm / 1.7 x 3.5″ aluminum profiles
- Key Features and Benefits
- Four-point measurement system for precise clamp force distribution
- Adjustable measuring points for various clamp configurations
- Color touchscreen display with real-time force distribution
- Built-in printer for easy data documentation
- Supports force readings in kg, N, kN, and lb
