Description

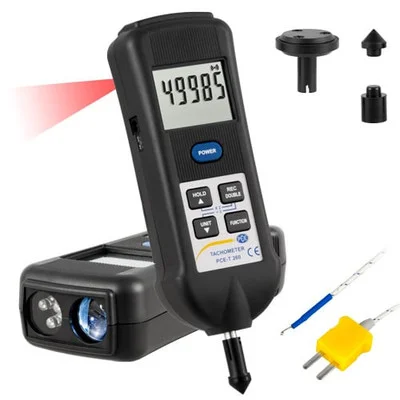

PCE Instruments Condition Monitoring Tachometer with Stroboscope (PCE-T 260) is a versatile device designed for measuring rotational speed, surface speed, and temperature. Featuring optical and contact tachometry, infrared temperature measurement, and a built-in stroboscope, this device is ideal for maintenance, production, and industrial applications.
Designed for precision and ease of use, the PCE Instruments Condition Monitoring Tachometer includes a bright LED strobe, RS232 interface for data transfer, and memory functions to store minimum, maximum, and last measured values.
- Specifications and Dimensions
- Optical measurement range: 5 … 99,990 RPM
- Contact measurement range: 0.5 … 19,999 RPM
- Surface speed range: 0.05 … 1,999.9 m/min
- Resolution:
- RPM: <1>
- Surface speed: <100>
- Accuracy: ±0.05% + 1 digit
- Stroboscope measuring range: 100 … 99,990 FPM
- Infrared temperature range: -30 … 305°C / -22 … 581°F
- Type K temperature range: -100 … 1300°C / -148 … 2372°F
- PT1000 temperature range: -10 … 70°C / 14 … 158°F
- Power supply: 4 x 1.5V AA batteries or DC 9V adapter
- Display: 5-digit LCD, 10 mm
- RS232 interface for data transfer
- Environmental conditions: 0 … 50 °C, <80>
- Weight: 255 g / < 1 lb (without batteries)
- Dimensions: 207 x 67 x 39 mm
- Key Features and Benefits
- Combines tachometry, temperature measurement, and strobe functionality
- Measures rotational speed in both optical and contact modes
- Infrared and thermocouple temperature measurement
- Memory function stores min, max, and last measured values
- RS232 interface for data logging and PC connection
- Robust ABS plastic housing for industrial use
- LED strobe for high-speed motion analysis
- Includes
- 1 x Condition Monitoring Tachometer PCE-T 260
- 1 x Measuring adapter
- 2 x Measuring tips (internal and external cone)
- 1 x Measuring wheel
- 1 x Reflective tape (600 mm)
- 1 x Carrying case
- 1 x Instruction manual
