Description

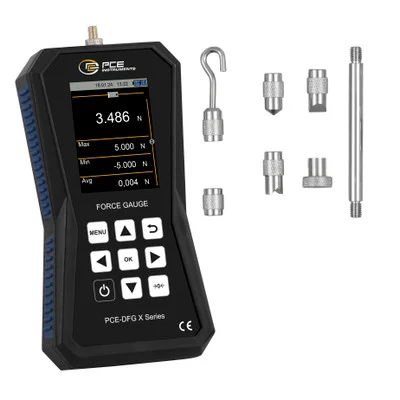

PCE Instruments Digital Force Gauge (PCE-DFG 5 X) is a high-precision tool designed to measure both tensile and compressive forces with accuracy up to 5 N. This device is perfect for laboratory and industrial applications, ensuring precise force measurement in research and testing.
Equipped with an internal measuring cell, this force gauge supports various attachments via its M6 thread, making it highly versatile. It offers a 32GB internal memory capable of storing up to 30 million measurement points, a graphical LCD display for real-time data visualization, and a USB-C interface for seamless data transfer.
- Specifications and Dimensions
- Measuring range: 0 … 5 N
- Resolution: 0.001 N
- Accuracy: ±0.05 % FS
- Display: 2.8-inch LCD with illumination
- Adjustable measurement rate: 1 … 7,200 Hz
- Memory capacity: 32GB (stores 30 million measurement points)
- Power supply: USB 5V DC, 500 mA
- Operating time: 13 hours
- Protection class: Device (IP52)
- Weight: 255 g
- Dimensions (L x W x H): 165 x 85 x 32 mm
- Key Features and Benefits
- Measures tensile and compressive forces up to 5 N
- 32GB internal memory for extensive data storage
- USB-C interface for fast and reliable data transfer
- Customizable alarm modes: Inside, Outside, Crack, Switch-off
- Supports multiple measurement units: N, kg, t, kN, Pa, kPa, Nm, lb, ft, g
- High-resolution LCD with graphical display
- Calibration reminder ensures consistent accuracy
