Description

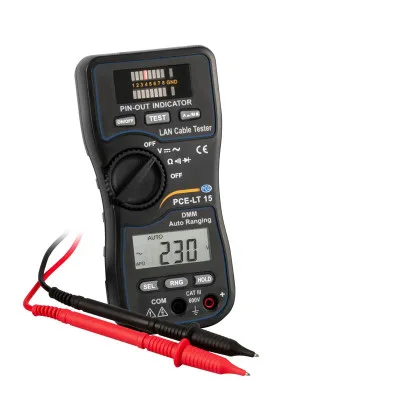

PCE Instruments Voltmeter (PCE-LT 15) is a versatile tool that combines a LAN tester and a multimeter, making it ideal for quick network diagnostics and electrical measurements. It efficiently detects common network errors such as short circuits, open connections, and continuity faults in RJ-45 cables. Additionally, the built-in voltmeter allows for precise AC and DC voltage measurements.
The PCE Instruments Voltmeter offers a resistance measurement function along with a continuity and diode test, ensuring reliable troubleshooting in various electrical installations.
- Specifications and Dimensions
- Measuring Function – AC Voltage: 400 mV to 750V (±1% from +5 Dgt)
- Measuring Function – DC Voltage: 400 mV to 1000V (±0.5% of v/m +3Dgt)
- Measuring Function – Resistance: 400 Ω to 40 MΩ (±1.2% from +3 Dgt, ±2% from +4 Dgt for 40 MΩ)
- Continuity Test: < 25Ω alarm
- Display: LED bargraph for LAN test, LC display for multimeter
- Power Supply: LAN tester – 1 x 9V battery, Multimeter – 2 x 1.5V AAA batteries
- Electric Safety: CAT III 600V
- Dimensions: Handset – 165 x 82 x 42 mm, Remote unit – 75 x 30 x 25 mm
- Weight: Handset – 240 g, Remote unit – 30 g
- Key Features and Benefits
- Combination device with LAN tester and multimeter for efficient troubleshooting
- Quickly checks network cables and patch panels for continuity and wiring issues
- Measures AC/DC voltage, resistance, and continuity for electrical diagnostics
- Clear LED indicators show pin assignments and short circuits in data cables
- Diode testing and buzzer-enabled continuity check for circuit validation
- Compact and portable with battery operation for field use
- Overload protection for safe operation in various environments
