Description

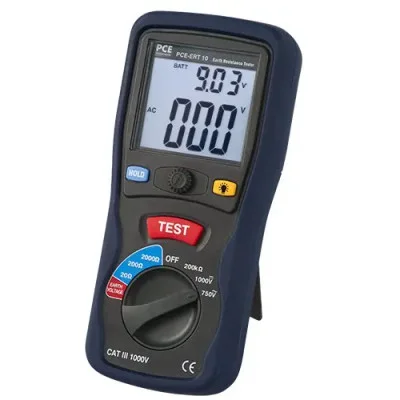

PCE Instruments Earth Tester (PCE-ERT 10) is a reliable and precise instrument designed to measure earth resistance and ground voltage in various applications. Using a three-wire measuring method, it ensures accurate resistance testing up to 2000 Ω, making it an essential tool for electrical safety and grounding inspections.
The earth resistance tester also features AC and DC voltage measurement capabilities, along with a resistance function up to 200 kΩ. A large backlit LCD screen displays readings, including battery status, ensuring clear visibility in all conditions.
- Specifications and Dimensions
- Measuring Ranges: Earth resistance: 20 Ω / 200 Ω / 2000 Ω
- Ground Voltage: Up to 200 V
- DC Voltage: Up to 1000 V
- AC Voltage: Up to 750 V (40 Hz – 400 Hz)
- Resistance Measurement: Up to 200 kΩ
- Resolution: 0.01 Ω / 0.1 Ω / 1 Ω (earth resistance)
- Accuracy: ±(2 % + 10 dgt) for earth resistance
- Display: LCD with backlight
- Power Supply: 6 x 1.5V AA batteries
- Sample Rate: 2.5 readings per second
- Operating Conditions: 0 … +40 °C, <80>
- Dimensions: 200 x 92 x 50 mm
- Weight: 700 g
- Standards: IEC10101, CAT III 1000V
- Key Features and Benefits
- Three-wire earth resistance measurement for accurate results
- Measures resistance, ground voltage, and AC/DC voltage
- Zeroing function for enhanced measurement accuracy
- Backlit LCD for easy reading in low-light environments
- Includes
- 1 x Earth Tester PCE-ERT 10
- 1 x Set of test leads (approx. 15m)
- 4 x Ground spikes
- 6 x Batteries
- 1 x Carrying case
- 1 x Instruction manual
