Description

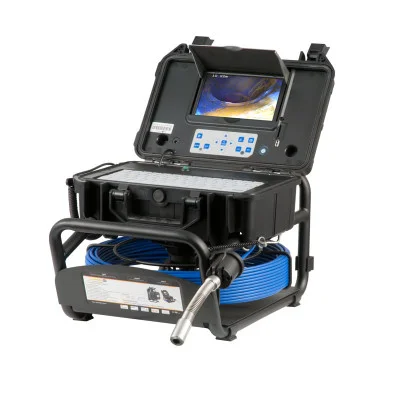

PCE Instruments Industrial Borescope (PCE-PIC 40) is an essential tool for professionals requiring visual inspection of pipes and ducts. Equipped with a 23 mm camera head attached to a 40-meter fiberglass push cable, this borescope is ideal for inspecting pipes and ducts ranging from DN 40 to 150 mm in diameter.
To enhance damage detection and blockage identification, the industrial borescope features an electronic meter counter. Captured images and videos can be stored on an SD memory card, and for comprehensive documentation, comments can be added via the included keyboard.
- Specifications and Dimensions
- Camera Head Diameter: 23 mm / 0.9 in
- Cable Length: 40 m / 131 ft
- Sight Depth: 20 to 100 cm
- Field of View: 120°
- Lighting: 12 x LED (dimmable)
- White Balance: Automatic
- Image Sensor: 1/3″ Sony CCD, 720 x 576 pixels
- Display: 7″ LC display
- Interface: USB 2.0
- Memory: Supports SD card up to 32 GB
- Video Output Format: PAL 720 x 576 pixels; NTSC 720 x 488 pixels
- Menu Navigation: Multilingual
- Length Measurement: 0 to 40 m / 0 to 131 ft
- Data Entry: Via keyboard
- Operating Conditions: -10 to 50°C / 14 to 122°F, 30 to 90% RH
- Storage Conditions: -20 to 60°C / -4 to 140°F, 30 to 90% RH
- Power Supply: 110V to 240V AC / 12V / 1.2 A DC
- Battery: Li-Ion 7.4V / 5400-mAh
- Protection Class: Display IP66, Camera Head Waterproof up to 20m (66ft)
- Dimensions: 55 x 43.5 x 34.5 cm
- Camera Head Length: 23 x 45 mm (Total Length: 150 mm)
- Weight: Approximately 13 kg (28.7 lbs)
- Key Features and Benefits
- 40m (131ft) push cable for extended reach
- Electronic meter counter for precise distance tracking
- Compact 23mm waterproof camera head for tight spaces
- Keyboard input for adding comments to images and videos
- 12x LED lighting for optimal visibility
- Rechargeable battery with power supply and car charger options
- IP66-rated waterproof case for secure transport and storage
- Supports SD card storage for images, videos, and sound recording
- Includes
- 1 x PCE-PIC 40 Industrial Borescope
- 1 x Standard Camera Head
- 1 x Main Unit with Case
- 1 x Cable Roller and Push Cable
- 1 x Power Supply
- 1 x Car Charger Adapter
- 1 x Keyboard
- 1 x Remote Control
- 1 x 46 mm (1.8 in) Guide
- 1 x 80 mm (3.1 in) Guide
- 1 x User Manual
