Description

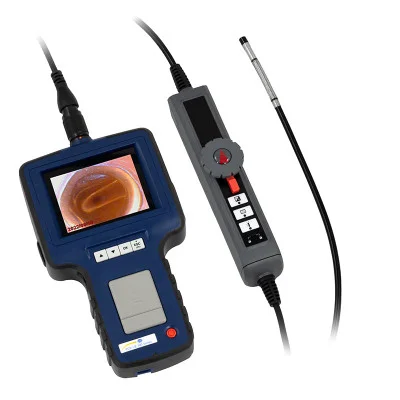

PCE Instruments Inspection Camera (PCE-VE 350HR) is a high-performance tool designed for non-destructive inspection in industrial settings. Equipped with a 2-way articulating camera, this device allows precise visual diagnostics of machinery, pipes, and other hard-to-access areas.
The waterproof camera head features LED lighting for enhanced visibility, and the boost function ensures improved image quality in dark environments. The inspection camera supports real-time viewing and stores images and videos on an SD card, making it ideal for maintenance and troubleshooting tasks.
- Specifications and Dimensions
- Cable Diameter: 6.0 mm / 0.24 in
- Cable Length: 1 m / 3.28 ft
- Depth of Field: 1.5 … 10 cm / 0.59 … 3.94 in
- Field of View: 67°
- Bending Radius: 90 mm / 3.54 in
- Illumination: 6 LEDs (4 front, 2 side), automatic
- Boost Function: Enhances image quality in low-light conditions
- Image Sensor: CMOS
- Picture Rate: 30 frames per second (fps)
- Display: 3.5 in TFT LCD monitor
- Interface: Mini USB 1.1 / AV out
- Storage Options: Image or video
- Storage Capacity: 8 GB memory card (expandable up to 32 GB)
- Compression Format: MPEG 4
- Picture Format: JPEG (640 x 480 pixel resolution)
- Video Output Format: NTSC / PAL
- Video Format: ASF (320 x 240)
- Operating & Storage Temperature: -10 … 50°C / 14 … 122°F
- Voltage Supply: Rechargeable 3.7V lithium-ion battery
- Device Dimensions: 207 x 118 x 37 mm / 8.15 x 4.65 x 1.46 in
- Weight (including carrying case): 450 g / 1 lb
- Camera Protection: IP 67 (dust-tight and water-resistant up to 1 m / 3.28 ft of submersion)
- Key Features and Benefits
- Two-way articulating camera for precise inspections
- High-quality CMOS sensor with automatic LED lighting
- Boost function for improved visibility in low-light conditions
- 1-meter flexible cable for navigating tight spaces
- Stores images and videos on an 8 GB SD memory card (included)
- Rechargeable lithium-ion battery for long-lasting use
- Includes a durable carrying case for portability
