Description

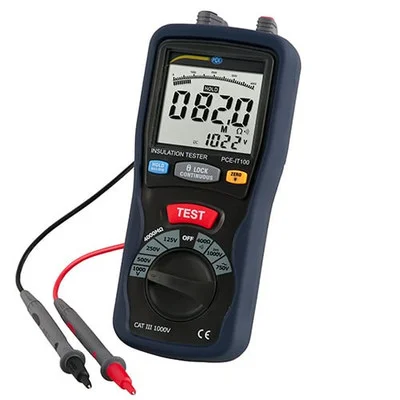

PCE Instruments Insulation Tester PCE-IT100 is a reliable device designed for testing insulation resistance in electrical systems. With test voltages of up to 1000V, this insulation tester measures resistance values up to 4000 MΩ, making it ideal for quality control and maintenance tasks.
The device features a dual display with backlight, ensuring easy readability in all lighting conditions. The large rotary switch and buttons provide intuitive operation, while the integrated data-hold function and max/min value recording enhance usability.
- Specifications and Dimensions
- Test Voltages: 125V, 250V, 500V, 1000V
- Insulation Resistance Range: 4 MΩ, 40 MΩ, 400 MΩ, 4000 MΩ
- Voltage Measurement: AC: 750V / DC: 1000V
- Resistance Measurement: 40Ω / 400Ω
- Accuracy: ± 1.2% ± 3 dgt (varies by test mode)
- Display: Dual LCD with backlight
- Continuity Test: Audible beep at ≤35Ω
- Power Supply: 6 x 1.5V AA batteries
- Environmental Conditions: 0 … 40°C (operating), -10 … 60°C (storage)
- Dimensions: 200 x 92 x 50 mm / 7.9 x 3.6 x 2 in
- Weight: 700 g / 1.5 lbs
- Safety Standard: EN 61010-1, CAT III 1000V
- Key Features and Benefits
- Measures insulation resistance up to 4000 MΩ
- Four selectable test voltages up to 1000V
- Data-hold function and max/min value recording
- Auto power-off to conserve battery life
- Continuity tester with audible alarm
- Includes test leads, crocodile clip, and carrying case
