Description

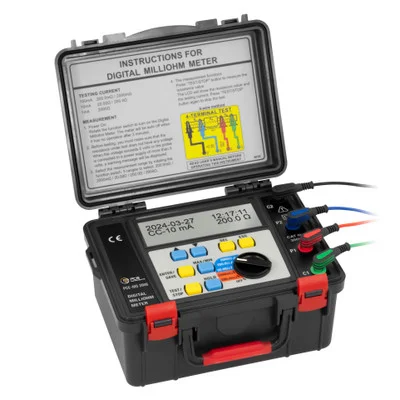

PCE Instruments Milliohmmeter (PCE-MO 2006) is a high-precision measuring device designed for resistance testing in industrial applications. With a measurement range from 0 mΩ to 2000 Ω, it uses the 4-wire measurement method to ensure accurate readings by reducing errors caused by test lead resistance.
It includes an internal memory capable of storing up to 200 values, with additional functions like MAX/MIN/HOLD for monitoring critical resistance variations. Built with IP65 protection when the lid is closed, it is suitable for both laboratory and field environments.
- Specifications and Dimensions
- Measurement Ranges:
- 0 mΩ … 200 mΩ (Resolution: 0.1 mΩ, Accuracy: ±0.8% of reading)
- 0 mΩ … 2000 mΩ (Resolution: 1 mΩ, Accuracy: ±0.8% of reading)
- 0 Ω … 20 Ω (Resolution: 10 mΩ, Accuracy: ±0.8% of reading)
- 0 Ω … 200 Ω (Resolution: 0.1 Ω, Accuracy: ±0.8% of reading)
- 0 Ω … 2000 Ω (Resolution: 1 Ω, Accuracy: ±0.8% of reading)
- Measurement Functions: MIN, MAX, HOLD
- Display Type: LCD with backlight (5.1 inches)
- Internal Memory: Stores up to 200 measurements
- Measurement Method: 4-wire system
- Test Currents:
- 100 mA (200.0 mΩ / 2000 mΩ ranges)
- 10 mA (20.00 Ω / 200.0 Ω ranges)
- 1 mA (2000 Ω range)
- Automatic Shutoff: After 3 minutes of inactivity
- Safety Standard: CAT III 300V
- Fuse Protection: 200 mA / 600 V
- IP Rating: IP65 (with closed lid)
- Power Supply: 8 x 1.5V LR14 batteries (Alkaline-manganese, 7000mAh)
- Weight: 1500 g
- Dimensions: 245 x 190 x 130 mm
- Operating Conditions: 0 … 40°C, 0 … 80% RH
- Measurement Ranges:
- Key Features and Benefits
- Highly accurate 4-wire measurement method minimizes errors
- Five selectable resistance ranges for flexible testing
- Large LCD with backlight for easy visibility in low-light conditions
- Internal memory stores up to 200 readings for later analysis
- MAX/MIN/HOLD functions for capturing critical resistance changes
