Description

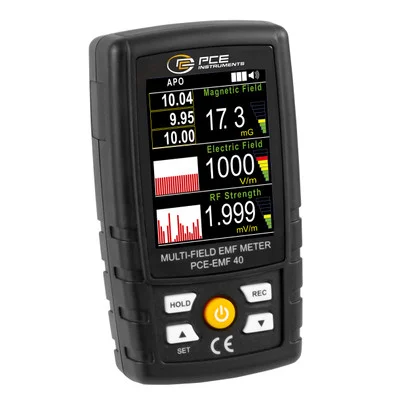

PCE Instruments Multi-Field Electromagnetic Field Meter (PCE-EMF 40) is a versatile measuring device designed for accurate detection of electromagnetic radiation. This 3-axis gauss meter enables simultaneous measurement of low-frequency magnetic fields, low-frequency electric fields, and high-frequency electromagnetic radiation.
Designed for mobile and professional use, the device measures up to 2000V/m for electric fields and 2000 mG for magnetic fields. It includes an automatic alarm function when exposure limits are exceeded.
- Specifications and Dimensions
- Low-Frequency Magnetic Field (mG): 200.0 … 2000 mG
- Low-Frequency Magnetic Field (µT): 20.00 … 200.0 µT
- Resolution: 0.01 µT, 0.1 µT
- Low-Frequency Electromagnetic Field (V/m): 50 … 2000 V/m
- Resolution (V/m): 1 V/m
- High-Frequency Measurement (mV/m, V/m): 30.0 mV/m … 11.00 V/m
- Resolution: 0.01, 0.1 mV/m
- High-Frequency Power Density: 0.02 … 32.0 µW/cm²
- Sensor Count: 3 for magnetic fields, 1 for electromagnetic fields
- Measurement Rate: 1 Hz
- Display: 2.4-inch TFT color screen
- Power Supply: 3 x 1.5V AAA batteries
- Power Consumption: 24 … 38 mA
- Automatic Shut-Off: After 10 minutes (can be disabled)
- Operating Temperature: 0 … 50°C / 32 … 122°F
- Dimensions: 107 x 60 x 25 mm / 4.2 x 2.4 x 1 in
- Weight: Approx. 106 g / < 1 lb (without batteries)
- Key Features and Benefits
- Three-axis detection for precise field measurements
- Measures low and high-frequency electromagnetic radiation
- Real-time graphical display of the last 20 readings
- Color-coded bar graph with alarm function for high exposure levels
- Includes
- 1 x Electromagnetic Field Meter (PCE-EMF 40)
- 3 x 1.5V AAA Batteries
- 1 x User Manual
