Description

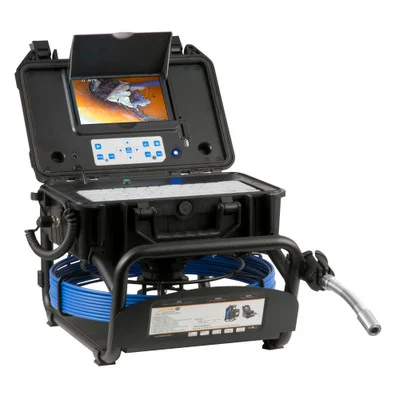

PCE Instruments Pipe Inspection Videoscope (PCE-PIC 20) is an essential tool for service technicians requiring visual inspection of pipes and ducts. Equipped with a 23 mm camera head attached to a 20-meter fiberglass push cable, this videoscope is ideal for inspecting pipes and ducts ranging from DN 40 to 150 mm in diameter.
The system is housed in a waterproof case mounted directly on the cable reel, facilitating easy transport and storage. The rechargeable battery allows for mobile operation, with charging options via power supply or car adapter.
- Specifications and Dimensions
- Camera Head Diameter: 23 mm / 0.9 in
- Cable Length: 20 m / 66 ft
- Sight Depth: 20 to 100 cm
- Field of View: 120°
- Lighting: 12 x LED (dimmable)
- White Balance: Automatic
- Image Sensor: 1/3″ Sony CCD, 720 x 576 pixels
- Display: 7″ LC display
- Interface: USB 2.0
- Memory: Supports SD card up to 32 GB
- Video Output Format: PAL 720 x 576 pixels; NTSC 720 x 488 pixels
- Menu Navigation: Multilingual
- Length Measurement: 0 to 20 m / 0 to 66 ft
- Data Entry: Via keyboard
- Operating Conditions: -10 to 50°C / 14 to 122°F, 30 to 90% RH
- Storage Conditions: -20 to 60°C / -4 to 140°F, 30 to 90% RH
- Power Supply: 110V to 240V AC / 12V / 1.2 A DC
- Battery: Li-Ion 7.4V / 5400-mAh
- Protection Class: Display IP66, Camera Head Waterproof up to 20m (66ft)
- Dimensions: 55 x 43.5 x 34.5 cm
- Camera Head Length: 23 x 45 mm (Total Length: 150 mm)
- Weight: Approximately 13 kg (28.7 lbs)
- Key Features and Benefits
- 20m (66ft) push cable for extended reach
- Electronic meter counter for precise distance tracking
- Compact 23mm waterproof camera head for tight spaces
- Keyboard input for adding comments to images and videos
- 12x LED lighting for optimal visibility
- Rechargeable battery with power supply and car charger options
- IP66-rated waterproof case for secure transport and storage
- Supports SD card storage for images, videos, and sound recording
- Includes
- 1 x PCE-PIC 20 Videoscope
- 1 x Standard Camera Head
- 1 x Main Unit with Case
- 1 x Cable Reel and Push Cable
- 1 x Power Supply
- 1 x Car Charger Adapter
- 1 x Keyboard
- 1 x Remote Control
- 1 x 46 mm (1.8 in) Guide
- 1 x 80 mm (3.1 in) Guide
- 1 x User Manual
