Description

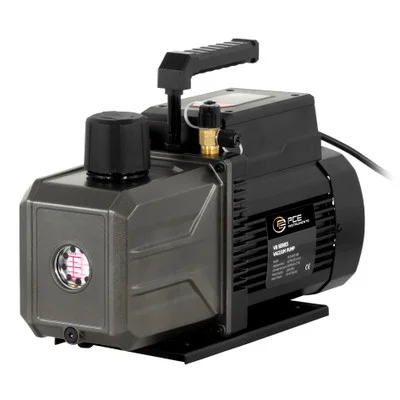

PCE Instruments Vacuum Pump for Refrigerant Evacuation (PCE-RVP 180) is designed to evacuate air, moisture, and non-condensable gases from HVAC, refrigeration, and heat pump systems. With a powerful 0.75 HP (550 W) motor, this vacuum pump ensures efficient refrigerant extraction while maintaining a high flow rate of 226 l/min.
Equipped with a durable filter element, this vacuum pump minimizes oil mist emissions, contributing to a cleaner work environment. The ergonomically designed rubber handle allows for secure transport and easy handling.
- Specifications and Dimensions
- Motor Power: 0.75 HP (550 W)
- Flow Rate: 226 l/min
- Ultimate Vacuum: 150 Microns
- Oil Capacity: 660 ml
- Connection Type: 1/4″ SAE, 3/8″ SAE
- Protection Class: IP20
- Power Supply: Schuko Plug (230V AC)
- Weight: 13.54 kg (Device), 13.6 kg (with Accessories), 15 kg (with Packaging)
- Dimensions (L x W x H): 390 x 140 x 260 mm
- Operating Conditions: 5 … 40 °C, 20 … 80 % RH
- Storage Conditions: 5 … 40 °C, 20 … 80 % RH
- Key Features and Benefits
- Designed for refrigerants including R12, R22, and R134a
- High-torque motor ensures powerful vacuum performance
- Efficient moisture and air removal enhances system efficiency
- Filter element reduces oil mist for cleaner operation
- Comfortable rubber handle for easy transport
- Compatible with multiple refrigerant hoses and applications
- Compact and lightweight design for convenient use
