Description

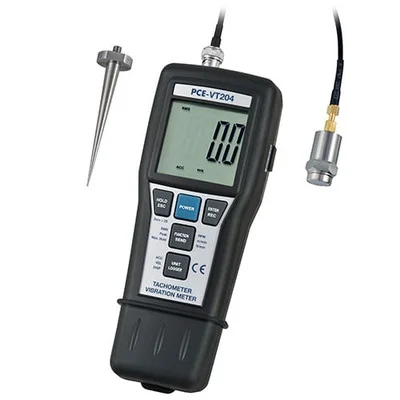

PCE Instruments Vibration Meter (PCE-VT 204) is a multifunctional handheld device designed for 3-axis vibration measurement and RPM monitoring. It provides accurate assessments of machine components like motors, gears, and transmissions. This vibration meter supports both contact and noncontact measurement, making it suitable for a variety of applications.
With an internal memory for storing up to 1000 readings, an easy-to-read LCD screen, and frequency filters to minimize background noise, this device ensures precise and reliable measurements.
- Specifications and Dimensions
- Vibration Measuring Range:
- Acceleration: 0.5 … 199.9 m/s², 0.05 … 20.39 g, 2 … 656 ft/s²
- Velocity: 0.5 … 199.9 mm/s, 0.05 … 19.99 cm/s, 0.02 … 7.87 in/s
- Displacement (Peak-to-Peak): 0.005 … 1.999 mm, 0.002 … 0.078 in
- Resolution:
- Acceleration: 0.1 m/s²
- Velocity: 0.1 mm/s
- Displacement: 0.001 mm
- Accuracy: ±5% ±2 digits
- Frequency Range: 10 Hz … 1000 Hz
- RPM Measurement:
- Optical: 10 … 99999 RPM
- Mechanical: 0.5 … 19999 RPM
- Velocity: 0.05 … 1999 m/min, 0.2 … 6560 ft/min
- Resolution: 0.1 RPM (below 1000 RPM), 1 RPM (above 1000 RPM)
- Accuracy: ±0.05% ±1 digit
- Optical Measuring Distance: 50 … 1500 mm (2 … 59 in, depending on surface)
- General Properties:
- Internal Memory: Stores up to 1000 readings
- Data Output: RS-232 port
- LCD Screen Size: 45 x 48 mm (1.77 x 1.88 in)
- Power Supply: 4 x 1.5V AA batteries
- Operating Conditions: 0 … 50ºC (32 … 122°F) / <80>
- Dimensions: 188 x 76 x 47 mm (7.4 x 3.0 x 1.9 in)
- Weight: 400 g / < 1 lb
- Enclosure: Durable plastic housing
- Key Features and Benefits
- Measures acceleration, vibration speed, displacement, and RPM for complete diagnostics
- Works as both a contact and noncontact tachometer
- Stores up to 1000 readings for easy tracking and comparison
- High-precision frequency filters eliminate background noise for accurate results
- Easy-to-read LCD screen with real-time display of measurements
- Low-battery indicator ensures uninterrupted operation
- RS-232 port for data transfer (optional software required for PC connection)
- Versatile mounting options with needle sensor, flat sensor, and adjustable magnetic base
- Includes
- 1 x PCE-VT 204 Condition Monitoring Vibration Meter
- 1 x Flat Sensor with 1.5 m / 0.06 in Cable
- 1 x 70 mm / 2.8 in Needle Sensor
- 1 x Magnetic Base
- 1 x Mechanical Wheel Sensor
- 1 x 600 mm / 23 in Reflective Tape
- 1 x Carrying Case
- 4 x Batteries
- 1 x User Manual
