Powermatic 1791264

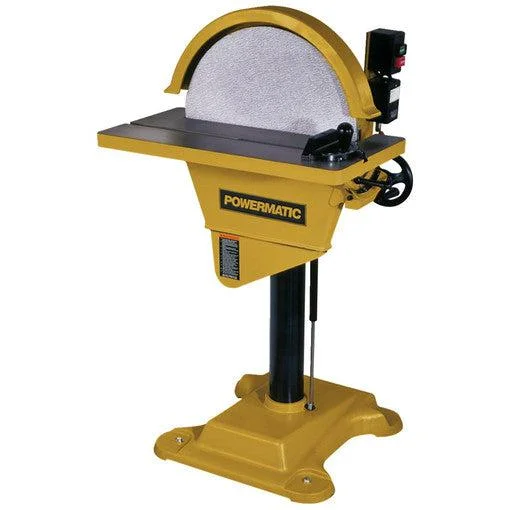

The DS20 20″ Disc Sander is ideal for the professional or serious home woodworking shop. It has direct drive from motor to disc for maximum efficiency, with a hand activated brake for quick stoppage of disc. The DS20 sander has an extra large sanding surface, adjustable tilting work table, and sturdy cast iron base. The swing away guard makes changing abrasive discs quick and easy.
Powermatic 1791264 Features
- Forward/reverse switch
- Direct drive from motor to disc for maximum efficiency
- Tilting table allows bevel sanding
- Miter gauge for angle sanding
- 20″ sanding disc for larger workpieces
- 4″ port for connection to any dust collection system
Powermatic 1791264 Specifications
| Disc Diameter (In.) | 20 |
| Dust Collection Minimum CFM Required (CFM) | 600 |
| Style (Type) | Disc |
| Dust Port Outside Diameter (In.) | 4 |
| Disc Table Size (L x W) (In.) | 10-1/2 x 27-1/2 |
| Motor Phase | 3 |
| Motor Power (HP) | 3 |
| Motor Voltage (V.) | 230/460 |
| Recommended Circuit Size (Amps.) | 20/15 |
| Motor Current (Amps) | 9.8/4.9 |
| Disc Speed (RPM) | 1,720 |
| Prewired Voltage (V.) | 230 |
| Disc Table Tilt (Deg.) | 30 Up, 45 Down |
