Powermatic DT65 Dovetailer/Pneumatic Clp

Description

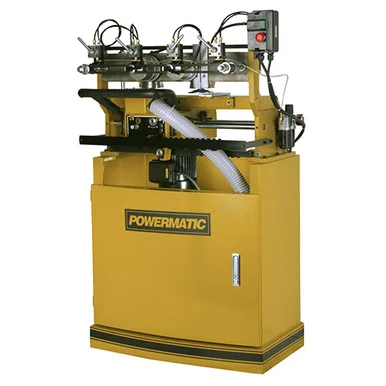

Powermatic DT65 Dovetailer/Pneumatic Clp

The POWERMATIC® DT65 Single Spindle Dovetailer offers exceptional quality for the most common joints used in drawer construction. This machine provides an affordable solution for producing cleanly cut, professional-grade dovetails that will enhance your products.

The DT65 is equipped with a 1 HP, 230V single-phase motor, pneumatic clamping, a magnetic starter, and a carbide-tipped cutter. Additionally, it comes with a four-sided template that allows for dovetailing at 1″, 1-1/2″, 2″, and 2-1/2″ centerlines. This versatility in dovetail centerlines adds a unique, customized appearance to your work.

Details:

• Four centerlines – 1″, 1-1/2″, 2″, and 2-1/2″ – create a custom appearance
• Pneumatic clamping provides quick locking and unlocking of the workpiece
• Eccentric spindle collet for resharpened cutters
• Spring-loaded carriage makes for smooth, effortless dovetail cutting
• Cutter height of 3/16″ to 3/4″ accommodates different cutting depths and board thicknesses
• Extra-large soft grip handle provides positive control and comfort
• The precision linear carriage bearings are sealed on both ends to eliminate dust buildup
• Visual stylus and template aid in guiding the carriage
• Material stops provide convenient positioning of the workpiece
• Cast iron and steel construction for added stability and durability
• 1HP motor transfers plenty of power via the drive belt to the spindle
• Magnetic starter for safety

Standard Equipment:

• Four-sided template
• Workstops
• Tool kit
• Dovetail bit
• Dust chute with hose

Specifications:

• Part Number: 1791305
• Warranty: 1 Year
• Motor Power: 1 HP
• Motor Phase: 1 Ph
• Motor Voltage: 230 V
• Minimum Work Piece Size (L x W): 7-7/8 x 2-3/8″
• Maximum Work Piece Size (L x W): 59 x 16-1/2″
• Minimum Dovetail Height: 3″
• Maximum Dovetail Height: 3″
• Minimum Front Thickness: 9″
• Maximum Front Thickness: 2″
• Minimum Side Thickness: 3″
• Maximum Side Thickness: 1″
• Number of Spindles: 1
• Spindle Speed: 18500 RPM
• Center to Center Dovetail Spacing: 1, 1-1/2, 2, and 2-1/2″
• Table Height From Floor: 45″
• Dust Port Diameter Outer Dimension: 2-1/2, rear 4″
• Dust Collection Minimum CFM Required: 500 cu.ft/min
• Model Number: DT65
• Brand: Powermatic
• Overall Dimensions: 37 x 44 x 63
• Height: 63 inches
• Width: 44 inches
• Length: 37 inches
• Net Weight: 420 pounds
