Description

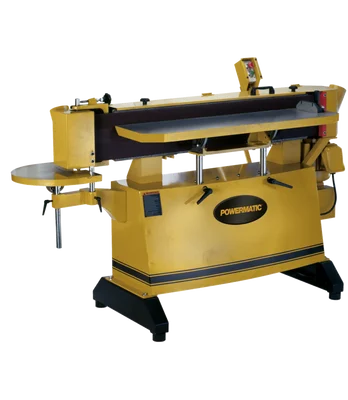

The Powermatic OES9138 Model 3HP/1PH Oscillating Edge Sander (1791282) is designed as a professional-grade machine for efficient and precise sanding of large wood pieces. It features a robust 3HP motor and a lengthy 9″ x 138-3/4″ abrasive belt, making it ideal for demanding woodworking tasks. The sander’s large worktable tilts for angled sanding and offers significant vertical travel to accommodate various workpiece sizes.
KEY FEATURES AND BENEFITS:
- Powerful 3HP Motor: Handles large wood pieces and heavy-duty sanding tasks effectively.
- Long Abrasive Belt: 9″ x 138-3/4″ belt provides ample sanding surface and extends belt life.
- Large Worktable: 11-3/4″ x 48″ table tilts 5 degrees inward and 45 degrees outward for angled sanding, with 8 inches of vertical travel.
- Oscillating Action: Moves the belt 24 times per minute to minimize sanding marks and ensure a uniform finish.
- Cast Iron Platen: Measures 9-1/2″ x 48″ with a graphite coating for cooler operation and extended belt life.
- User-Friendly Belt Changes: Bearing-assisted tensioning device and quick-release lever for fast belt changes and adjustments.
- Effective Dust Collection: Two dust ports connect to a dust collection system for a cleaner work environment and extended belt life.
- Durable Construction: Heavy-duty oscillating gearbox and shaft ensure long-lasting performance with minimal maintenance.
SPECIFICATIONS:
- Model: OES9138
- Motor: 3HP, 1-phase
- Abrasive Belt Size: 9″ x 138-3/4″
- Worktable Size: 11-3/4″ x 48″
- Table Tilt: 5 degrees inward, 45 degrees outward
- Vertical Travel: 8 inches
- Oscillations: 24 per minute
- Platen Size: 9-1/2″ x 48″
- Dust Ports: Two ports, compatible with 4-inch dust collection systems
HOW TO USE:
- Place the sander on a stable and level surface in your workshop.
- Connect the sander to a suitable 1-phase power supply.
- Adjust the worktable tilt and height to accommodate the workpiece.
- Turn on the sander and adjust the oscillating action to your desired frequency.
- Feed the workpiece against the sanding belt, utilizing the oscillating action for a uniform finish.
- Monitor dust collection and empty dust ports as necessary during operation.
- Perform regular maintenance tasks, including belt tension checks and lubrication of moving parts.
BENEFITS OF USING Powermatic OES9138 Model 3HP/1PH Oscillating Edge Sander (1791282):
- Handles large wood pieces and heavy-duty sanding tasks with ease.
- Provides precise and uniform sanding results with oscillating action.
- Offers versatility with a large tilting worktable and ample vertical travel.
- Ensures durability and longevity with a cast iron construction and heavy-duty components.
- Improves workplace cleanliness and extends belt life with effective dust collection.
FEATURES:
- Powerful 3HP motor for efficient sanding.
- Large 9″ x 138-3/4″ abrasive belt for extended operation.
- Adjustable worktable with tilting and vertical travel capabilities.
- Oscillating action for minimizing sanding marks.
- Durable cast iron platen with graphite coating.
- User-friendly belt tensioning and quick-release lever.
- Effective dust collection with two ports.
- Heavy-duty oscillating gearbox and shaft for long-lasting performance.
