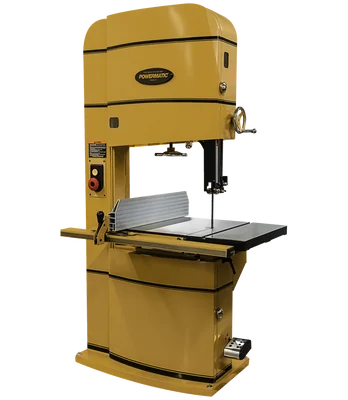

Powermatic PM2415B-3 Model 5HP 24″ Vertical Band Saw (1791260B)

Description

The Powermatic PM2415B-3 Model 5HP 24″ Vertical Band Saw (1791260B) is engineered for professional woodworkers and industrial applications demanding superior performance. This heavy-duty saw boasts a 5 horsepower, 3-phase motor (requires specific electrical setup) to tackle large hardwoods and thick materials with ease. Powermatic’s commitment to empowering woodworkers is evident in the PM2415B-3’s design, exceeding expectations for expansive projects.

KEY FEATURES AND BENEFITS:

• Unmatched Resaw Capacity: Cuts up to 20 inches wide and 18 inches high, ideal for thick lumber
• Durable Construction: Cast iron table and trunnion assembly provide stability during cuts
• Precision Cutting: Powermatic T-square style Accu-Fence for accurate cuts; adjustable blade speed (2300 to 4400 SFPM)
• Safety Features: Blade tension release with electrical interlock, four-sided blade guard, integrated foot brake
• Versatility: Oversized side plate for horizontal or vertical use; tilting table (10 degrees left, 45 degrees right)
• Efficiency: High-end blade guides with tool-less adjustment for stability and cutting accuracy
• Built-in Dust Collection: Dust port (requires 600 CFM minimum) for a cleaner work environment

SPECIFICATIONS:

• Motor Power: 5 HP, 3-phase
• Table Size: 24″ x 27″
• Maximum Cutting Width: 20 inches
• Maximum Cutting Height: 18 inches
• Table Tilt: 10 degrees left, 45 degrees right
• Blade Speed: Adjustable from 2300 to 4400 SFPM
• Dust Port Diameter: Requires 600 CFM minimum
• Working Height: 36 inches from floor to table

HOW TO USE:

For optimal operation of the Powermatic PM2415B-3 Model 5HP 24″ Vertical Band Saw, follow these steps:

1. Adjust the blade speed to match the material being cut.
2. Set the fence using the Powermatic T-square style Accu-Fence for precise cuts.
3. Ensure all safety features are engaged, including the blade guard and foot brake.
4. Position the table for straight or angled cuts as needed.
5. Connect the dust collection system to maintain a clean work area.

BENEFITS OF USING Powermatic PM2415B-3 Model 5HP 24″ Vertical Band Saw (1791260B):

• Powerful 5 HP motor for tackling large hardwoods and thick materials
• Accurate cuts with Powermatic T-square style Accu-Fence and adjustable blade speed
• Enhanced safety features for operator protection
• Versatility in cutting positions and angles
• Durable construction with cast iron table and trunnion assembly
• Efficient dust collection system for maintaining a clean workspace

FEATURES:

• 5 HP, 3-phase motor for powerful cutting performance
• Cast iron table and trunnion assembly for stability
• Powermatic T-square style Accu-Fence for precise cuts
• Adjustable blade speed from 2300 to 4400 SFPM
• Blade tension release with electrical interlock for safety
• Oversized side plate for horizontal or vertical use
• Tilting table for angled cuts
• High-end blade guides with tool-less adjustment
• Built-in dust collection port (requires 600 CFM minimum)
