Description
The SC1 and SC2 are the first mini-chucks on the market to offer woodturners a premium-quality solution for those who regularly turn small, intricate items – bringing the world-renowned quality of the SC3 and SC4 to the mini-chuck market. The SC1 works in conjunction with a separately available insert, which means it can be used across a wide variety of lathes with different thread sizes, with a simple change of insert. It also makes a perfect partner to the SC4 chuck, as the inserts are a universal fit between both chucks. It also has a very compact 53.5 mm (2”) diameter body – giving easier access around the workpiece making it ideal for the turning of very small items.
Please choose the spindle size of your lathe above.

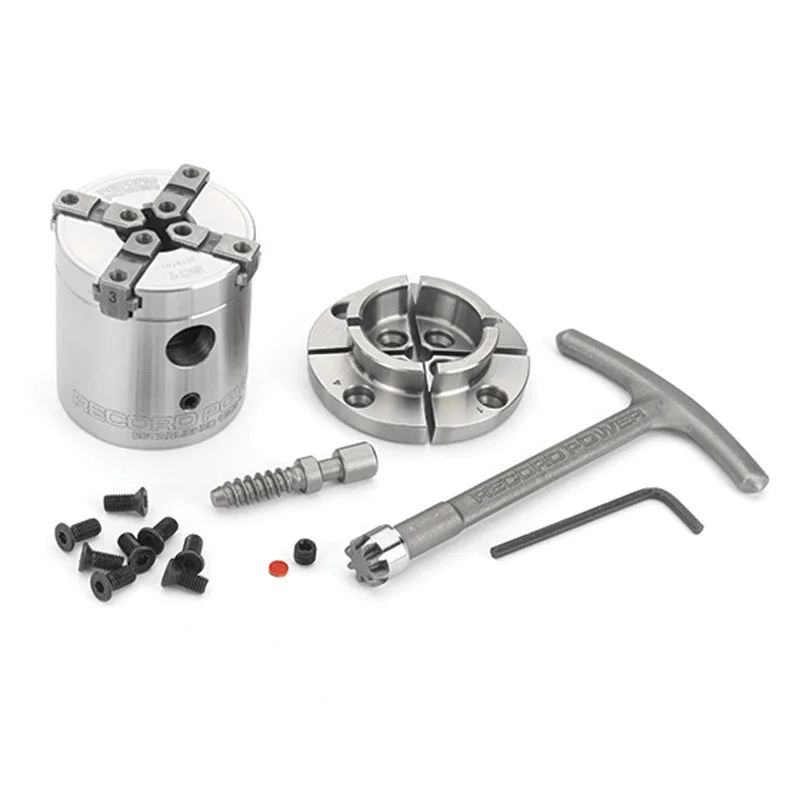

Includes:
- SC1 Chuck
- Compact 53.5 mm (2”) diameter body
- Ball-end Hex key
- Woodworm Screw — mounts in the jaws of the chuck converting it into a screw chuck with exceptional holding power.
- 40mm (1-1/2″) Standard Jaws – External Gripping Capacity: 30 – 40 mm (1-3/16″ – 1-1/2″). Internal Gripping Capacity: 40mm-50mm (1-1/2″ – 2″).
For all spindle sizes, a threaded insert is REQUIRED to adapt the chuck to fit your lathe.
See the chart below for the sizes available. If you do not see your size call us for assistance.Threaded Inserts are also sold separately, if you need a second one.
| Threaded Inserts | |
|---|---|
| Size | Lathes |
| 5/8″ Smooth | Shopsmith |
| 3/4″-16tpi | Sears, Record, Rigid |
| 1″-8tpi | Some Delta, Jet, General, Rikon and many others |
| 1″-12tpi | Grizzly |
| 1-1/4″-8tpi | Some Delta, General, Powermatic, Jet, Rikon |
| 1-1/4″-8tpi | Nova |
| This is a general guide. If you are notcertainwhich is the correct thread, check your lathe manual or call us. |
