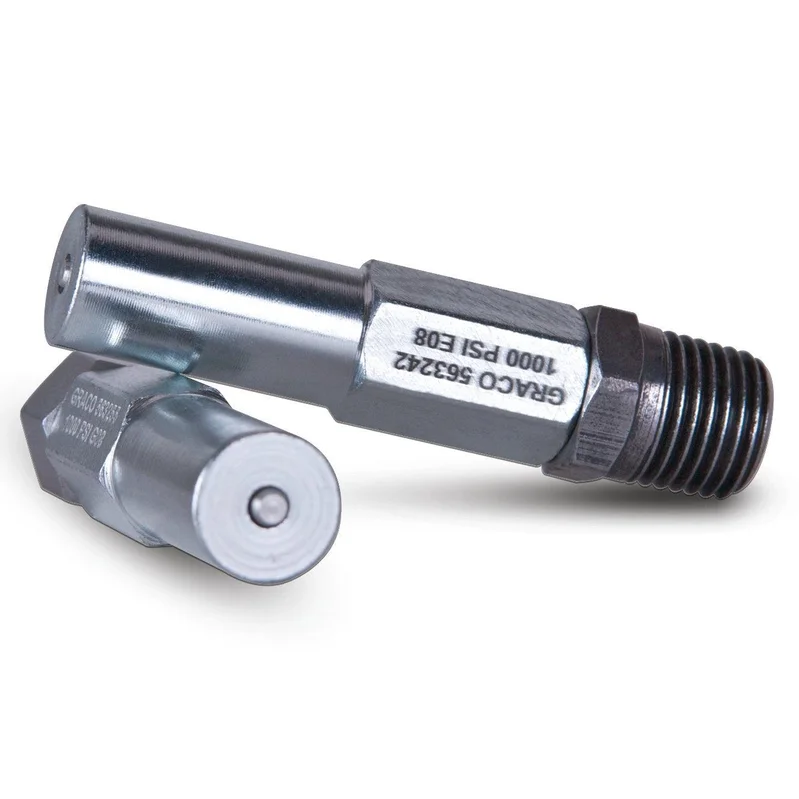

Description
Easy information on blocked lines, high system pressure or blocked bearings.
- Provides quick troubleshooting tool with visual indication
- No tools for reset or parts to replace after indication
- Easy information on blocked lines, high system pressure or blocked bearings
- Lubriquip part number 509-932-590
UPC Product: 00633955331709 Family Code: FAMCPT Unit of Measure: EA Height: 1.2 IN |3.048 CM Length: 2.4 IN |6.096 CM Width: 1.2 IN |3.048 CM Volume: .001 FT3 |0 M3 Chargeable Weight: .1 LBS | .05 KG
Technical Specifications
| Application | On-Road Vehicles, Off-Road Equipment, Compressor Equipment |
|---|---|
| Compatible Material | Oil, Grease |
| Connection Size (in) | 0.125 |
| Indicator Type | Reset Indicator with Memory |
| Maximum Working Pressure (bar) | 17 |
| Maximum Working Pressure (kPa) | 1700 |
| Maximum Working Pressure (psi) | 250 |
| Thread Type | NPSF |
| Type | Reset Indicator |
| Maximum Working Pressure (MPa) | 2 |
| Model | Trabon |
| For Use With | MSP, MXP, and MHH Divider Valves |
