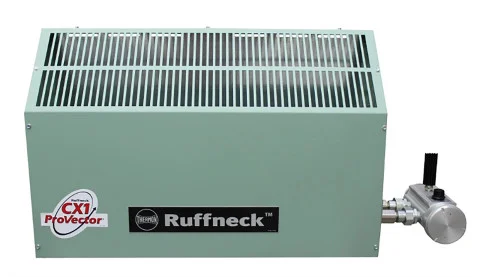

Ruffneck 3600W 240V T2A Temp Code CX1-ProVector (CX1240160036T2AIIBT)

Description

The Ruffneck 3600W 240V T2A Temp Code CX1-ProVector (CX1240160036T2AIIBT) sets the standard for safe and reliable heating in the most challenging industrial environments. Designed and manufactured specifically for demanding requirements and harsh operating conditions, including those found in the oil and gas well drilling industry, this heater ensures unparalleled performance and safety in hazardous locations. It is engineered to provide dependable and trouble-free service where flammable gases, vapors, or combustible dusts may be present, making it an essential component for maintaining operational continuity and safety in critical facilities. Its robust construction and adherence to rigorous safety standards provide peace of mind in high-risk settings.

KEY FEATURES AND BENEFITS:

• Certified for Hazardous Locations: Approved for Class I, Division 1 & 2, Groups A, B, C, D; Class II, Division 1 & 2, Groups E, F, G; and Class III, Division 1 & 2 environments, alongside IIA, IIB & IIC (IEC/ATEX gas groups). This comprehensive certification ensures suitability for a wide range of explosive atmospheres.
• Temperature Code T2A: Guarantees that the maximum surface temperature of any heater component will not exceed 280°C (536°F), even under fault conditions, preventing ignition of flammable materials.
• Efficient Convection Heating: Utilizes convection to distribute heat rapidly and effectively throughout the designated area, ensuring consistent and comfortable temperatures.
• Built-in Adjustable Thermostat: Allows for precise temperature control, adjustable from 36-82°F (2-28°C), enabling users to maintain optimal environmental conditions.
• Rugged Construction: Features a 14-gauge painted steel cabinet, engineered for resistance against harsh industrial conditions and ensuring prolonged operational life.
• Compact and Space-Saving Design: Its streamlined profile requires less wall and floor space compared to other models, and it boasts one of the shortest cabinet lengths available, facilitating easier integration into confined areas.
• Simplified Installation: Comes complete with galvanized steel mounting brackets, enabling versatile wall or ceiling installation and designed to reduce field installation time and costs.
• Corrosion Resistance: Constructed with materials and finishes designed to withstand corrosive elements commonly found in industrial settings, extending the product’s lifespan.
• Wide Operating Temperature Range: Capable of operating in ambient temperatures from -49°F (-45°C) up to 104°F (40°C), making it suitable for diverse climatic conditions.

SPECIFICATIONS:

• Model Number: CX1240160036T2AIIBT
• Heat Type: Convection
• Power: 3600 Watts (3.6 kW)
• Voltage: 240 Volts
• Phase: 1 Phase
• Amperage: 15 Amps
• Heat Output: 12,283 BTU/hour
• Indoor/Outdoor Use: Indoor
• Wiring: Hardwired
• Product Weight: 55 lbs
• Dimensions (L x W x H): 37.0 in x 8.25 in x 20.5 in
• Thermostat Range: 36-82°F (2-28°C)
• Construction Material: 14-gauge painted steel cabinet
• Warranty: 1-year limited

HOW TO USE:

1. Review Documentation: Thoroughly read and understand the complete Ruffneck CX1-ProVector installation, operation, and maintenance manual supplied with the unit.
2. Professional Installation: Engage qualified, certified electrical and hazardous area personnel to perform the installation. Ensure strict adherence to all local and national electrical codes, hazardous area regulations, and safety standards applicable to the installation site.
3. Secure Mounting: Mount the unit firmly to a wall or ceiling using the provided galvanized steel mounting brackets. Follow the specified clearances and mounting guidelines detailed in the manual to ensure proper air circulation and safety.
4. Electrical Connection: A licensed electrician must hardwire the heater safely to a dedicated 240V, 1-phase power supply, following the precise wiring diagrams and safety protocols outlined in the product manual.
5. Thermostat Adjustment: Once installed and powered, adjust the integrated thermostat to the desired temperature setting within its operational range (36-82°F / 2-28°C) to achieve the required ambient conditions in the heated space.
6. Pre-Operation Checks: Before continuous operation, conduct all pre-commissioning and safety checks as specified in the manual to confirm proper installation, electrical integrity, and the functionality of all safety interlocks.
7. Regular Maintenance: Adhere to the recommended maintenance schedule and procedures outlined in the product manual to ensure the continued safe, efficient, and reliable operation of the heater over its lifespan.

BENEFITS OF USING RUFFNECK 3600W 240V T2A TEMP CODE CX1-PROVECTOR (CX1240160036T2AIIBT):

• Enhanced Safety in Hazardous Environments: Its explosion-proof design and specific certifications dramatically reduce the risk of ignition in areas with flammable gases, vapors, or combustible dusts, safeguarding personnel and assets.
• Reliable and Consistent Heating: Engineered for trouble-free service, it provides continuous and dependable warmth, crucial for maintaining optimal working conditions and protecting sensitive equipment in critical industrial operations.
• Compliance with Industry Standards: Meets stringent UL-CUL and CSA hazardous location certifications, ensuring that facilities comply with regulatory requirements for safety in explosive atmospheres.
• Optimized Air Quality and Distribution: The convection heating method promotes better air circulation and faster heat distribution compared to radiant heaters, contributing to a more comfortable and uniform indoor environment.
• Reduced Operational Downtime: Its robust construction and reliability minimize the need for frequent repairs or replacements, contributing to lower maintenance costs and consistent uptime for industrial processes.
• Space Optimization: The compact design allows for efficient use of available wall and floor space, which is particularly valuable in crowded industrial settings where space is often at a premium.

FEATURES:

• Incoloy® 840 heating elements integrated with radial-embossed aluminum plate fins for superior heat transfer and efficiency.
• Sloped-top cabinet design that effectively prevents objects from being placed on top, thereby ensuring unobstructed airflow and enhancing safety.
• No exposed copper or brass components, catering to specific industrial requirements where these materials must be avoided.
• High-velocity airflow characteristics contribute to the rapid and even dispersion of heated air throughout the designated space.
• UL-CUL and CSA Certified for Hazardous Locations, ensuring full compliance with essential safety and performance standards.
• Designed to operate effectively in a broad range of ambient temperatures, from significantly cold conditions (-49°F / -45°C) to moderately warm environments (104°F / 40°C).
• Integrated, field-adjustable thermostat for precise control over the heat output based on specific environmental needs.
• Galvanized steel mounting brackets included for versatile and secure installation on either wall or ceiling surfaces.
• Available with IP55 moisture ingress protection, offering resistance against dust and water jets in demanding environments.
