Description

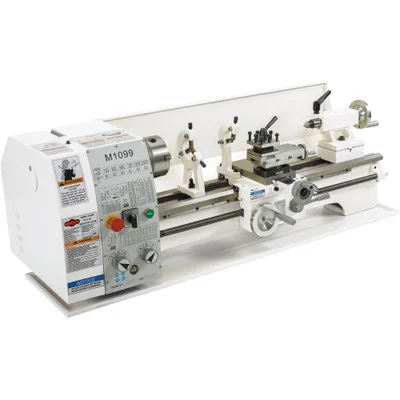

Shop Fox 10″ x 26″ Benchtop Metal Lathe with Quick-Change Gearbox (M1099) delivers the performance you’d expect from larger, more extensive lathes. Featuring a 1 HP motor and a quick-change gearbox, this lathe ensures efficient and precise thread selection. The lathe includes a 5″ three-jaw scroll chuck with hardened steel jaws that self-center the workpiece, and an extra set of jaws for larger workpieces.
Whether you are a professional machinist or a hobbyist, this Shop Fox metal lathe provides the reliability and accuracy you need for various metalworking projects.
- Specifications and Dimensions
- Motor: 1 HP, 110V, single-phase
- Swing over bed: 9-5/8″
- Distance between centers: 26″
- Swing over cross slide: 6-1/8″
- Swing over saddle: 6-3/8″
- Cross slide travel: 6-1/2″
- Compound travel: 3-1/2″
- Carriage travel: 22-1/2″
- Spindle speeds: 6 @ 150, 300, 560, 720, 1200, 2400 RPM
- Spindle bore: 25mm
- Spindle thread: 1-3/4″ x 8 TPI
- Spindle taper: MT#4
- Bed width: 6-1/8″
- Tailstock barrel taper: MT#3
- Tailstock barrel travel: 2-1/2″
- Leadscrew: 3/4″-12 TPI
- Longitudinal feed range: 9 @ 0.0025″-0.0140″
- Thread range (inch): 33 @ 8-72 TPI
- Thread range (metric): 26 @ 0.25-3.5 mm
- Max. tool size: 1/2″
- Overall size: 50″L x 32″W x 16-5/8″H
- Approximate shipping weight: 475 lbs
- Key Features and Benefits
- Quick-change gearbox for efficient thread selection
- Includes both three-jaw and four-jaw chucks for versatile workpiece holding
- Extended-length, hardened-and-ground precision bedways for accurate operations
- Six-speed settings for various machining needs
- Complete with steady rest, follow rest, and 4-way turret tool post
- Durable and reliable construction for long-lasting performance
