Description

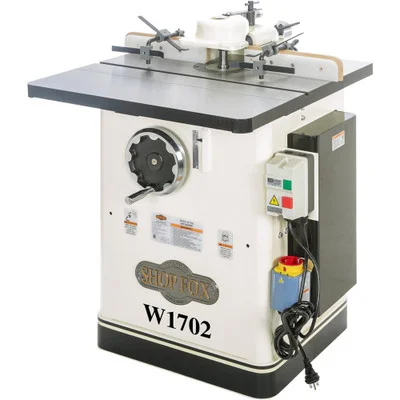

Shop Fox 3 HP Shaper with 28″ x 30″ Cast-Iron Table and Interchangeable Spindles (W1702) is designed to handle a wide range of shaping tasks, from simple edge profiling to complex door panel creation.
This Shop Fox W1702 woodworking shaper includes three spindle sizes and offers a maximum cutter diameter capacity of 5-1/2″. With two reversible speeds of 7000 and 10,000 RPM, it accommodates cutters of all sizes. The large hand wheel allows for precise spindle elevation, ensuring consistent results for every project.
- Specifications and Dimensions
- Motor: 3 HP, 220V, single-phase with reversing switch, 12A
- Large precision-ground cast-iron table
- Table size: 28-1/4″W x 30-1/2″D
- Spindles: 1/2″, 3/4″, 1″ (included)
- Max. cutter height (per spindle): 2″, 2-1/2″, 2-1/4″
- Spindle travel: 3″
- Spindle speeds: 7000 & 10,000 RPM
- Spindle openings: 1-3/8″, 2-3/4″, 4″, 5-1/2″
- Floor-to-table height: 34″
- Powder-coated finish
- Approximate shipping weight: 353 lbs
- Key Features and Benefits
- Three interchangeable spindles for versatile shaping tasks
- Large precision-ground cast-iron table for stability
- Reversible speeds for flexibility in cutter usage
- Magnetic switch with thermal overload protection
- Built-in 3″ dust port for cleaner operation
- Heavy cast-iron, independently adjustable, split fence for edge profiling
