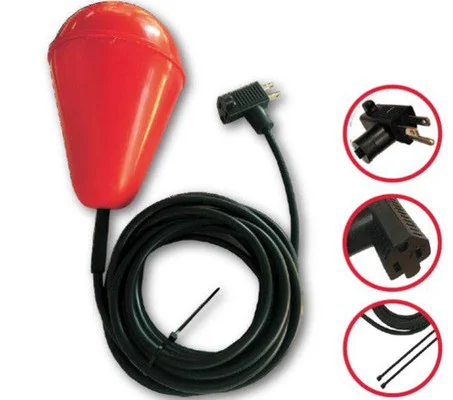

SludgeBoss 33‘ Piggyback Sludge Boss Float Switch (SA-3120-10)

Description

The SludgeBoss 33′ Piggyback Sludge Boss Float Switch (SA-3120-10) offers a dependable solution for measuring and controlling wastewater levels in emptying applications. Specifically engineered for sewage and septic systems, this float switch is designed to handle medium to heavy amounts of suspended solids, providing reliable automation for your pump. Its innovative self-orienting design eliminates the need for a tether, accommodating a variety of tank configurations. Built with quality components and backed by a strong warranty, the SludgeBoss provides peace of mind for managing challenging wastewater environments.

KEY FEATURES AND BENEFITS:

• Reliable Wastewater Control: Provides accurate measurement and automatic on/off control of pumps for emptying sewage and septic tanks.
• Self-Orienting Design: Eliminates the need for a tether or cable weight, ensuring hassle-free installation and consistent operation regardless of tank shape.
• Direct Pump Control: Can directly operate pumps with motors up to 1/2 HP or 13 Amps at 120 Volts AC for non-continuous use (and up to 12 Amperes continuous).
• Piggyback Plug Convenience: Features a molded piggyback plug for simple connection to 120V power outlets and pumps.
• Mercury-Free and Environmentally Friendly: Constructed without mercury, making it a safer and more environmentally responsible choice.
• Versatile Application: Suitable for use in septic tanks, sump pits, and potable water systems.

SPECIFICATIONS:

• Cord Length: 33 feet
• Voltage: 120V AC
• Maximum Horsepower: 1/2 HP
• Maximum Amperage: 13 Amps (non-continuous), 12 Amps (continuous)
• Operating Temperature: 32°F to 140°F (0°C to 60°C)
• Float Dimensions: 4 inches (diameter) x 6 inches (length)
• Weight: 2 lbs
• Protection Rating: IP68

HOW TO USE:

1. Installation: Suspend the SludgeBoss float switch inside the tank above the desired low water level where the pump should turn off. The self-orienting design means no specific tethering is required; the float will hang freely.
2. Pump Connection: Plug your 120V pump into the piggyback plug on the SludgeBoss float switch.
3. Power Connection: Plug the SludgeBoss’s power cord into a grounded 120V GFCI (Ground Fault Circuit Interrupter) protected receptacle.
4. Operation (Emptying Application): As the water level rises, the SludgeBoss float will pivot upwards. When the water reaches a level approximately 6-8 inches above the point where the float is hanging, the internal switch will activate, turning the pump on.
5. Pump Deactivation: As the pump removes water and the level drops, the SludgeBoss float will pivot downwards. Once the water level falls approximately 6-8 inches below the activation point, the internal switch will deactivate, turning the pump off.

BENEFITS OF USING THE SLUDGEBOSS 33′ PIGGYBACK SLUDGE BOSS FLOAT SWITCH (SA-3120-10):

• Simplifies installation with its tether-free, self-orienting design.
• Eliminates the need for external relays when operating pumps up to 1/2 HP.
• Mercury-free construction offers an environmentally conscious solution.
• Durable build with a Honeywell micro switch and polypropylene casing ensures longevity.
• Backed by a comprehensive 5-year warranty for peace of mind.
• Automates pump control to prevent overflows and maintain efficient wastewater management.
• No need for manual adjustments or entering the tank once installed.

FEATURES:

• Durable Construction: Built with a corrosion-resistant polypropylene casing and a PVC/Thermoplastic jacketed cable for long-lasting performance.
• High-Quality Internal Switch: Utilizes a Honeywell micro switch, rated for 100,000 operations, ensuring reliable switching action.
• Extended Reach: Comes with a 33-foot cable, providing flexibility in installation depth.
• Backed by a Strong Warranty: Offers an unrivaled 5-year field warranty against manufacturer defects.
• Safe and Certified: Holds CE and IEC approvals and boasts an IP68 rating for submersion.
