Description

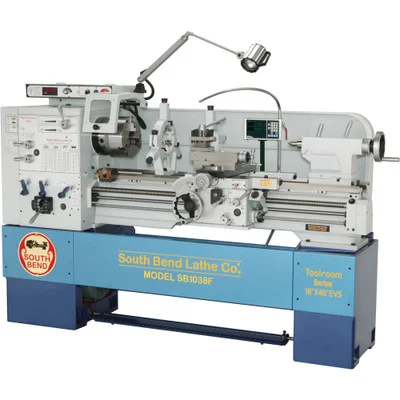

South Bend 16″ x 40″ 440V EVS Lathe with Precision Fagor DRO (SB1038F) is engineered to handle demanding machining tasks with precision and ease. Featuring a 7-1/2 HP motor, this lathe offers electronic variable-speed control from 20 to 2500 RPM, making it versatile for a wide range of projects.
This lathe is equipped with Allen-Bradley electrical components, a Yaskawa inverter for stable torque, and a D1-6 camlock spindle nose. A complete coolant system and one-shot lubrication system make maintenance straightforward, allowing for efficient operation in any industrial setting.
- Specifications and Dimensions
- Spindle motor: 7-1/2 HP, 440V, 3-phase, 11A
- Coolant pump motor: 1/8 HP, 0.15A
- Oil pump motor: 1/4 HP, 0.6A
- Swing over bed: 16″
- Distance between centers: 40″
- Spindle bore: 1.57″
- Spindle nose: D1-5 camlock
- Spindle taper: MT #6
- Spindle speeds: variable from 20 to 2500 RPM
- Swing over cross slide: 10-3/8″
- Swing over gap: 22.95″
- Width of bed: 10-1/4″
- Cross slide travel: 9-1/4″
- Compound slide travel: 5.1″
- Tailstock taper: MT #4
- Tailstock travel: 6″
- Tailstock barrel diameter: 2.047″
- Inch thread range: 2 to 72 TPI (45 pitches)
- Metric thread range: 0.2 to 14 mm (39 pitches)
- Modular threads: 0.3 to 3.5 (18 pitches)
- Diametral threads: 8 to 44 (21 pitches)
- Overall dimensions: 86″ W x 33″ D x 61″ H
- Key Features and Benefits
- Fagor 2-axis DRO for precise and repeatable positioning
- Meehanite castings and 3 V-Way bed for stability and durability
- Allen-Bradley electrical components for reliable operation
- Electronic variable speed control ranging from 20 to 2500 RPM
- One-shot lubrication system reduces maintenance time
