Description

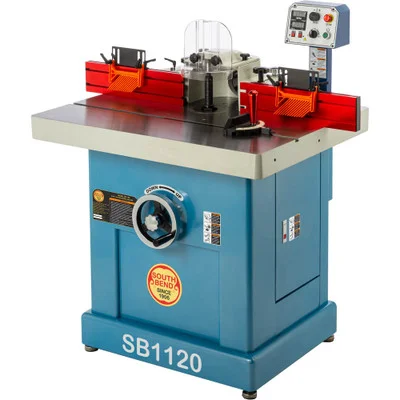

South Bend 5 HP 3-Phase Variable-Speed Spindle Shaper (SB1120) is engineered for demanding woodworking tasks, delivering accurate shaping with its digital readout (DRO) for spindle RPM and height control. Powered by a 5 HP motor, this shaper operates with variable speed from 5000 to 10,000 RPM.
This spindle shaper features an anodized aluminum fence with featherboard attachments, as well as a rack-and-pinion adjustment with 4″ travel, providing both stability and fine alignment. Its dual 4″ dust ports ensure an efficient dust collection system, keeping the workspace clean.
- Specifications and Dimensions
- Motor: 5 HP, 230V, 3-phase, 15A
- Required power supply: 230V, 3-phase, minimum 20A circuit
- Maximum cutter height: 5″
- Maximum cutter diameter: 7″
- Spindle diameters: 3/4″, 1-1/4″
- Spindle lengths: 3-7/8″ and 5-7/8″
- Spindle capacities under nut: 3-1/2″ and 5-1/8″
- Spindle speed: Variable, 5000–10,000 RPM
- Spindle travel: 4″
- Spindle openings: 2-1/2″, 4-1/8″, 5-3/4″, 7″
- Table counterbore: 8-1/4″ diameter, 3/16″ depth
- Table size: 31-1/2″ x 39-1/4″
- Floor-to-table height: 36-5/8″
- Footprint: 25-1/2″ x 31″
- Dimensions: 39-1/2″ W x 34″ D x 51-1/2″ H
- Approx. shipping weight: 800 lbs.
- Key Features and Benefits
- Digital Readout (DRO) for precise RPM and height positioning
- Anodized aluminum fence with featherboard attachments for added control
- Rack-and-pinion fence adjustment with micro-adjustment knobs for fine alignment
- Variable-speed range from 5000 to 10,000 RPM for versatile shaping
- Dual 4″ dust ports for efficient dust collection
- Quick-release belt tensioner for easy maintenance and adjustments
