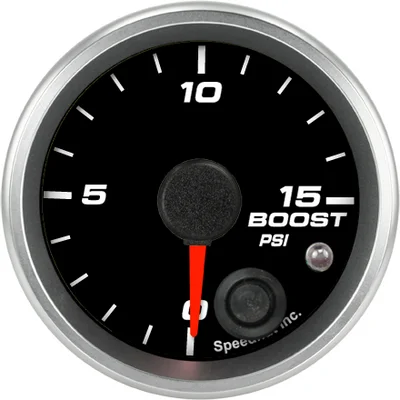

Speedhut 2-1/16″ 0-15 PSI Boost Gauge w/ Warning (R2-B2-REV)

Description

The Speedhut 2-1/16″ 0-15 PSI Boost Gauge w/ Warning (R2-B2-REV) is an essential tool for turbocharged or supercharged engine setups, offering accurate real-time readings of both boost and vacuum levels. Featuring a built-in warning light, it alerts you immediately when pressure deviates from preset thresholds. This ensures safe engine operation and early detection of possible issues. Equipped with a high-performance 3-Wire Military Grade Transducer, the gauge delivers reliable and consistent pressure measurements. Its compact, standard 2-1/16 inch size ensures easy integration into most dashboards or gauge pods, making it ideal for both performance tuning and long-term engine protection.

KEY FEATURES AND BENEFITS:

• Accurate Pressure Monitoring: Displays real-time boost (positive) and vacuum (negative) pressure levels for precise engine tuning.
• Integrated Warning Light: Alerts you to abnormal pressure conditions with a user-configurable visual indicator.
• High-Quality Sensor: Uses a 3-Wire Military Grade Transducer (Performance) for dependable, high-accuracy readings.
• Standard Size Compatibility: Designed for 2-1/16 inch gauge pods and panels, ensuring broad installation options.
• Improves Engine Safety: Enables early detection of pressure anomalies to help prevent damage and enhance engine longevity.
• LED Backlighting: Ensures visibility of readings in both daytime and nighttime driving conditions.

SPECIFICATIONS:

• Gauge Type: Boost/Vacuum Gauge
• Pressure Sender Type: 3-Wire Military Grade Transducer (Performance)
• Range: 0-15 PSI
• Size: 2-1/16 inch
• Hole Size: 2.062 inches (52mm)
• Standard or Metric: Standard
• Warning Light: Yes
• Ships With:
• Pressure Gauge Wiring Harness (3-Wire Cable)
• 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
• Pressure Sensor – 30 psi

HOW TO USE:

1. Mount the Gauge: Secure the 2-1/16″ gauge in a compatible location using the spin-lock ring, ensuring the 2.062″ hole size matches.
2. Connect the Pressure Sensor: Identify a suitable boost/vacuum source on the intake manifold (usually post-throttle body) and connect the included pressure sensor using an appropriate vacuum hose.
3. Wire the Pressure Sensor: Use the 3-Wire Pressure Gauge Wiring Harness to connect the sensor to the back of the gauge.
4. Connect Power and Lighting: Attach the 3 ft Power & Lighting Harness to a switched 12V source, a ground, and optionally to your vehicle’s dash lighting for illumination control.
5. Set the Warning Light: Follow the included instructions to program high or low warning thresholds for pressure levels.
6. Monitor Readings: Power on the gauge to begin real-time pressure monitoring. Watch for changes and warning light activations to ensure proper operation.

BENEFITS OF USING THE SPEEDHUT 2-1/16″ 0-15 PSI BOOST GAUGE W/ WARNING (R2-B2-REV):

• Provides accurate and immediate monitoring of engine boost and vacuum pressures.
• Helps optimize performance and maintain safe operating conditions for forced induction systems.
• Acts as an early alert system for pressure irregularities through its warning light feature.
• Ensures reliable readings with a high-grade transducer for long-term accuracy.
• Compact and standardized size allows for flexible installation in various vehicle dashboards.

FEATURES:

• Instant and precise measurement of both positive (boost) and negative (vacuum) pressures.
• Configurable warning light signals abnormal pressure ranges.
• Built with a durable 3-Wire Military Grade Transducer for consistent accuracy.
• 2-1/16 inch (52mm) diameter for compatibility with most gauge pods and panels.
• LED backlighting offers clear visibility during both day and night driving.
• Includes a dedicated wiring harness for the pressure sensor.
• Comes with a separate power and lighting harness for easy connection.
• Ships with a 30 PSI rated pressure sensor for versatile application.
