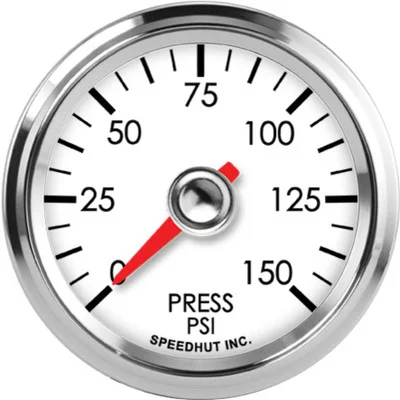

Speedhut 2-1/16″ 0-150 PSI Pressure Gauge (L2-P1-LEG)

Description

The Speedhut 2-1/16″ 0-150 PSI Pressure Gauge (L2-P1-LEG) is designed for accurate and reliable monitoring of pressure within a 0 to 150 psi range. Its classic 2-1/16 inch (52mm) size makes it suitable for a variety of installations. This gauge utilizes a high-performance, military-grade 3-wire transducer, ensuring precise and consistent pressure readings. The included mounting ring simplifies the installation process, providing a secure and finished look. While it does not feature a warning light, its focus is on delivering dependable pressure information for your system.

KEY FEATURES AND BENEFITS:

• Accurate Pressure Monitoring: Provides precise readings within the 0-150 psi range, essential for maintaining optimal system performance and preventing potential issues.
• Reliable Transducer: Features a 3-wire military-grade transducer known for its accuracy and durability, ensuring long-lasting and dependable operation.
• Standard Size: The 2-1/16 inch (52mm) diameter is a common size, offering compatibility with many gauge pods and mounting solutions.
• Easy Installation: The included mounting ring facilitates a straightforward and secure installation process.
• Performance-Oriented: The “Performance” designation of the transducer suggests responsiveness and accuracy suitable for demanding applications.

SPECIFICATIONS:

• Gauge Type: Pressure Gauge
• Range: 0-150 psi
• Size: 2 1/16 inch (52mm)
• Hole Size: 2.062 inches
• Pressure Sender Type: 3-Wire Military Grade Transducer (Performance)
• Included: Gauge, Mounting Ring

HOW TO USE:

1. Prepare the Mounting Location: Ensure you have a 2.062 inch (52mm) diameter hole in your desired mounting location.
2. Connect the Transducer: Install the 3-wire pressure transducer to the system you wish to monitor, ensuring proper sealing and orientation according to the transducer’s instructions.
3. Route the Wiring: Connect the three wires from the transducer to the corresponding terminals on the back of the pressure gauge. Refer to the wiring diagram that comes with the gauge. Typically, these wires will be for power, ground, and the signal output.
4. Insert the Gauge: Carefully insert the gauge into the prepared mounting hole from the front.
5. Secure with Mounting Ring: Slide the included mounting ring over the back of the gauge and tighten it to secure the gauge firmly in place.
6. Power Up: Once all connections are secure, power up your system. The gauge should now display the current pressure reading.

BENEFITS OF USING THE SPEEDHUT 2-1/16″ 0-150 PSI PRESSURE GAUGE (L2-P1-LEG):

• Using the Speedhut 2-1/16″ Classic Pressure Gauge provides you with accurate and immediate pressure readings, allowing for proactive monitoring of critical systems.
• The robust military-grade transducer ensures reliability and longevity, reducing the risk of inaccurate readings or premature failure.
• Its standard size offers versatility in mounting options, and the included mounting ring simplifies the installation process.
• By having precise pressure information readily available, you can optimize performance, diagnose potential issues early, and contribute to the overall health and efficiency of your system.

FEATURES:

• Three-Conductor Sensor: Employs a three-conductor, high-reliability sensor for consistent data transmission.
• Traditional Sizing: Designed with a traditional 2 1/16″ diameter for broad installation compatibility.
• Clear Display: Presents pressure readings in a clear 0 to 150 psi scale for easy interpretation.
• Secure Mounting: Comes packaged with a fastening bezel for a finished and stable mount.
• Performance Sender: Utilizes a performance-focused sender for quick and precise pressure updates.
